22HP Hydraulic Portable Sawmill 4.5m 6m Sawing Log Length

Product Categories

Weifang Jiuyi Information technology co., LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Ask Lasest Price
Brand Name :	SH
Certification :	ISO9001
Model Number :	MJH1000D, MJH1300P
Price :	USD16,000-25,900/SET
Delivery Time :	within 20 days
Payment Terms :	T/T or L/C at sight, Western Union
Supply Ability :	500Sets /year

Add to Cart

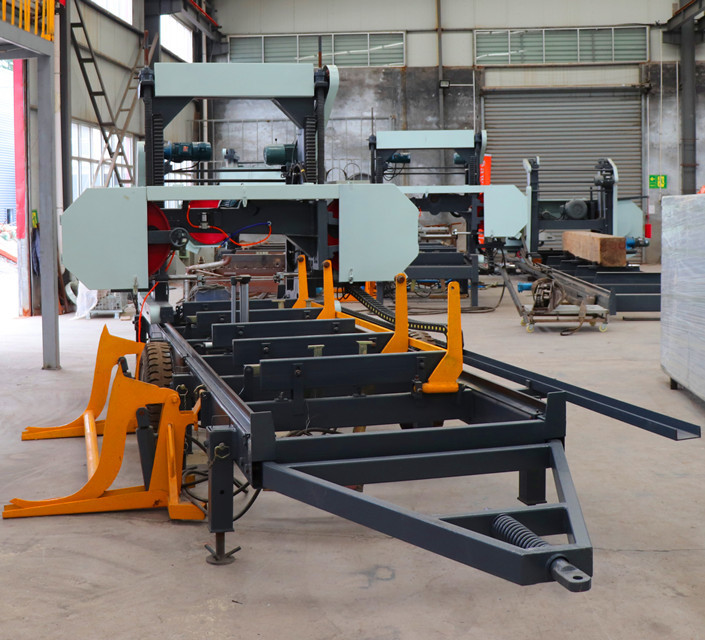

Hydraulic Portable sawmill, Diesel power, Full Hydraulic to Cut 36 round log 20 ft. long

Hydraulic Horizontal Band Sawmill (Petrol/Diesel Engine type )

Standard Configuration
	Hydraulic Log Loading Arm *1			Hydraulic Clamp *1 Secure and stabilize the log
	Hydraulic Wood Clamp*4 Secure and stabilize the log			Hydraulic vertical side supports *4 Secure and stabilize the log
	Mobile Wheels, 8 Adjustable Up/down legs			Board automatic return hook
Optional parts:
		Touch Screen Accuset Setworks Automatically moves head for each cut and head walking speed is Frequency variable	Hydraulic bi-directional Chain log turner*2 For max. log control
		Hydraulic wood adjuster x1	Extend The Rail Length

22HP Hydraulic Portable Sawmill 4.5m 6m Sawing Log Length

ydraulic Horizontal Band Sawmill

型号	Model	SW1000P
锯割木材直径	Max Sawing Wood Diameter	1000mm
锯轮直径	Saw Wheel Diameter	700mm
最大锯割木材厚度	Max Sawing Wood Thickness	350mm
锯割木材长度(标准)	Standard Sawing Wood Length	4500mm
功率	Engine Power	35HP petrol engine or 22HP diesel engine
锯头(升/降)	Up/Down	Electrial
行走方式(前进/倒退)	Forward/Backward	Inverter
锯条宽度范围	Saw Blade width	50-80mm
1,木材上料装置	Hydraulic Log Loading Arms	1
2,液压翻转夹紧顶装置	Hydraulic Rotation Clamping	2
3,10个支架腿+轮胎4个	10pcs legs + tryes 4pcs	1
4,设定锯割尺寸	Sawn sizes setting	touching screen +PLC
5,液压链式翻滚装置	Hydraulic Chain Rotation	2
6,液压档木立桩	Hydraulic lot stop pole	4
机床长度	Machine Length	5800mm
重量	Weight	2800kg

Hydraulic Chain Rotation
22HP Hydraulic Portable Sawmill 4.5m 6m Sawing Log Length
Hydraulic Rotation Clamping
