The portable horizontal band sawmill is designed to meet the requirements of customers in Africa ,South America and eastern europe.
It is simple installation,easy operation,labor saving,and high
productivity.
This machine can be drived by either electric motor or diesel
engine.
Portable Horizontal Band Sawmill (Electric Model )
Portable horizontal band saw which is easy to install and operate.
Finished with Carbide band saw blade for hard wood cutting . The
sawing kerf is small, reduce the waste to high output.
The computerized sawmill is sutiable for cutting expensive wood in
the furniture factory and move around to cut wood in virgin forest
.
Horizontal Portable Band Sawmill With Electric Motor
| Specifications: |
Technical Parameter | MJ700E | MJ1000E | MJ1300E | MJ1600E |
Max. Sawing Wood Diameter | 700MM | 1000MM | 1300MM | 1600MM |
Saw Wheel Diameter | 600MM | 700MM | 700MM | 700MM |
Sawn Thickness | 2-250MM | 2-300MM | 2-300MM | 2-300MM |
Sawing Wood Length MM | 1300-4500 | 1300-4500 | 1300-4500 | 1300-4500 |
Main Motor Power | 15KW | 18.5KW | 22KW | 30KW |
Lifting Motor Power | 1.1KW | 1.1KW | 1.1KW | 1.1KW |
Total Weight (KG) | 1100 | 1100 | 1300 | 1500 |

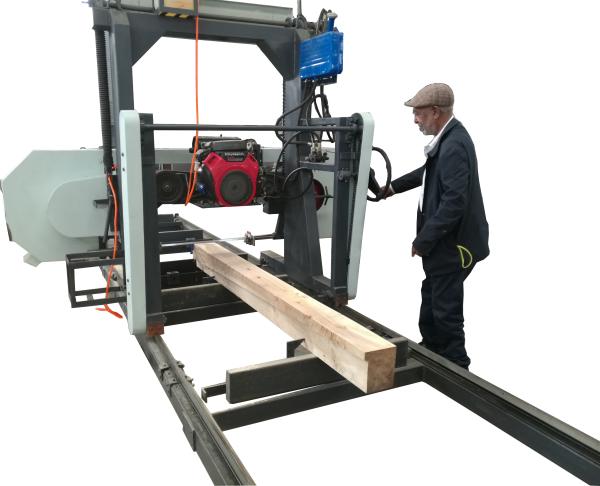

Portable Horizontal Band Sawmill (Diesel Model )
Portable horizontal band saw is our patent product. It equiped with
diesel engine or gasoline engine . Easy to install and operate,
suitable for moving around and cutting the wood in the virgin
forest .
Horizontal Portable Band Sawmill With Diesel Engine
Technical Parameter | MJ700P | MJ1000D | MJ1300D | MJ1600D |
Sawing Wood Diameter | 700MM | 1000 | 1300 | 1600 |
Saw Wheel Diameter(MM) | 600 | 700 | 700 | 700 |
Sawn Thicknes | 2-250 | 2-300 | 2-300 | 2-300 |
Sawing Wood Length (MM) | 1300-4500 | 1300-4500 | 1300-4500 | 1300-4500 |
Engine | 22HP Petrol | 22HP Diesel | 25HP Diesel | 27HP Diesel |
Band Saw Blade Length | 5500 | 6100 | 6600 | 7100 |
Machine Length(MM) | 5800 | 5800 | 5800 | 5800 |
Total Weight (KG) | 1100 | 1100 | 1300 | 1500 |
