Square Wood Industrial Sawmill Equipment With 700mm Band Wheel

Ask Lasest Price
Brand Name :	SH
Certification :	ISO9001
Model Number :	SLS350, SLSP400, SLS500
Price :	US $14,300 - 124,000 / Set
Delivery Time :	within 20days
Payment Terms :	T/T, Western Union
Supply Ability :	1000sets/year

Add to Cart

Product Details
Company Profile

Square Wood Industrial Sawmill Equipment With 700mm Band Wheel

Log Cutting Double Vertical Band Saw For Cutting Square Wood with band wheel in 700mm

TWIN BANDSAW FOR LOG EDGES CUTTING

Designed to receive logs and make two vertical cuts removing a slab from either side of the log.

· Ideal to cut pine, eucalyptus, and teak.

· High-precision cutting.

· Laterally-supported chain.

· High-production continuous feed system.

· Produces up to 4,000 m³ per month.

· Highly efficient use of wood, with the finest cut on the market.

· Motorization and control panel included.

· Automatic feed

Technical Specifications:

Technical data	SLS350	SLS500
Maximum log diameter	350mm	500mm
Minimum log diameter	100mm	100mm
Wood length	1000 to 3000mm	1000 to 3000mm
Feed speed	9-25m/min (inverter)	9-25m/min (inverter)
Conveyor length	7000mm	3500mm x 2
Band wheel diameter	700mm	760mm
Width of saw blade	50-80mm	50-100mm
Length of saw blade	4850	5200mm
Thickness of saw blade	0.9mm	0.9mm
Saw motor	2x18.5kw	2x22kw
Feed motor	5.5kw	4kw x 2
Sawn sizing control	Touching screen auto setworks	Touching screen auto setworks

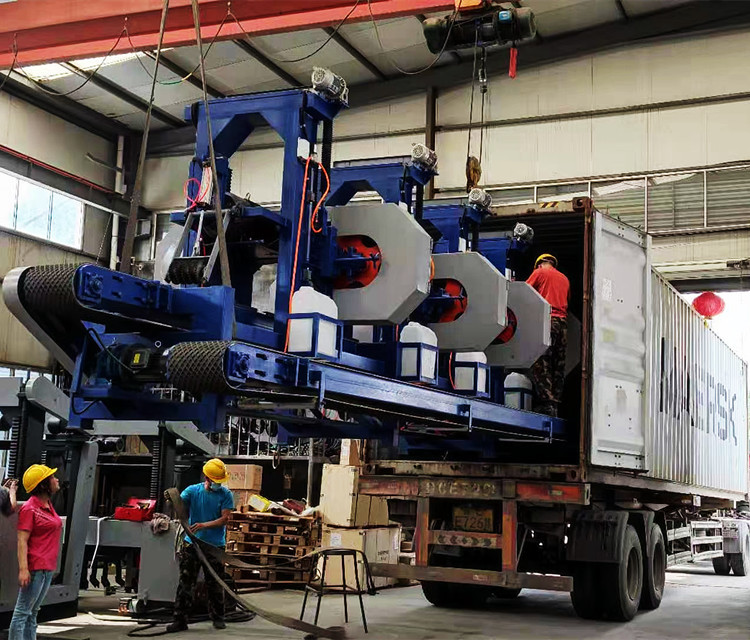

Photos

Square Wood Industrial Sawmill Equipment With 700mm Band Wheel

Optional - Complete Automatic Wood Sawmill Production Line

Square Wood Industrial Sawmill Equipment With 700mm Band Wheel

Related Products

Multiple Heads Horizontal Resaw Band Saws

This machine is easy-operated,high efficiency and easy-installed.
The head quantity is given option from one to six .The user will get multi board at one time to improve the efficiency.
Main Features:

1.The head quantity from one to six is available.
2.Touch screen setting sawing thickness.
3.Variable Frequency Speed Adjustable Feeding Speed.

Technical data

Technical specifications	DT300-1	DT300-2	DT300-3	DT300-5	DT300-6
Sawing width	300mm	300mm	300mm	300mm	300mm
Minimum wood thickness	2mm	2mm	2mm	2mm	2mm
Maximum wood height	260mm	260mm	260mm	260mm	260mm
Band wheel diameter	700mm	700mm	700mm	700mm	700mm
Saw motor	15kw	15kw x 2	15kw x 3	15kw x 5	15kw x 6
Saw machine length	3500mm	4500mm	5800mm	8500mm	11000
Weight	900kg	1500kg	2200kg	3500kg	5000kg
Feeding	Variable frequency speed adjustable conveyor
Operation	Touching screen auto setworks for sawn thickness

Detailed Image -6heads reaw equipment
Square Wood Industrial Sawmill Equipment With 700mm Band Wheel
Optional - board returning conveyor

5heads reaw equipment

Square Wood Industrial Sawmill Equipment With 700mm Band Wheel

Multi Blades Rip Saw

Multi Blades Rip Saw- For wood panels/plank cutting

Model	SH60-300	SH80-300	SH100-300	SH120-300	SH150-300
Max. Sawing width	250-300mm	250-300mm	250-300mm	250-300mm	250-300mm
Max. Sawing thickness	60mm	30-80mm	40-100mm	50-120mm	60-150mm
Motor	18.5KW/22KW	22KW*2	22KW*2	22KW*2	30KW*2
Saw Blade Diameter	150MM	180mm	210mm	230mm	255mm
Spindle Diameter	50mm	50mm	50mm	50mm	50mm
Weight	1190kg	1260kg	1420kg	1560kg	1620kg

Square Wood Industrial Sawmill Equipment With 700mm Band Wheel

Wood Slabs Cutting Circular Saw

Specifications:

Model Specifications	BPJ200	BPJ250	BPJ300
Cutting width (mm)	200	250	300
Cutting height	100mm	100mm	150mm
Motor power (KW)	7.5kw x 2	7.5kw x 2	11kw x 2
Feeding	Frequency variable auto feeding
Circular blade diameter	305(mm)	355(mm)	405(mm)
Weight (kg)	480	600	750
Overall size	1450x1150x1400mm	1450x1200x1400mm	1750x1250x1550mm

We can also do bigger model as customer needs .

Photos :

Square Wood Industrial Sawmill Equipment With 700mm Band Wheel
