Multiple Heads Horizontal Resaw Bandsaw 700mm Saw Wheel Diameter

Ask Lasest Price
Brand Name :	SH
Certification :	ISO9001
Model Number :	DT300-1,DT300-2,DT300-3,DT300-5,DT300-6
Price :	US $14,200-37,700 / Set
Delivery Time :	within 15 days
Payment Terms :	T/T or L/C at sight, Western Union
Supply Ability :	500 Sets/Year

Add to Cart

Product Details
Company Profile

Multiple Heads Horizontal Resaw Bandsaw 700mm Saw Wheel Diameter

China Automatic sawmill machine Multiple Heads Horizontal resaw machine

Multiple Heads Horizontal Resaw Band Saws

This machine is easy-operated,high efficiency and easy-installed.

The head quantity is given option from one to six .The user will get multi board at one time to improve the efficiency.

Main Features:

1.The head quantity from one to six is available.

2.Touch screen setting sawing thickness.

3.Variable Frequency Speed Adjustable Feeding Speed.

Technical Data

Technical specifications	DT300-1	DT300-2	DT300-3	DT300-5	DT300-6
Sawing width	300mm	300mm	300mm	300mm	300mm
Minimum wood thickness	2mm	2mm	2mm	2mm	2mm
Maximum wood height	260mm	260mm	260mm	260mm	260mm
Band wheel diameter	700mm	700mm	700mm	700mm	700mm
Saw motor	15kw	15kw x 2	15kw x 3	15kw x 5	15kw x 6
Saw machine length	3500mm	4500mm	5800mm	8500mm	11000
Weight	900kg	1500kg	2200kg	3500kg	5000kg
Feeding	Variable frequency speed adjustable conveyor
Operation	Touching screen auto setworks for sawn thickness

Detailed Image

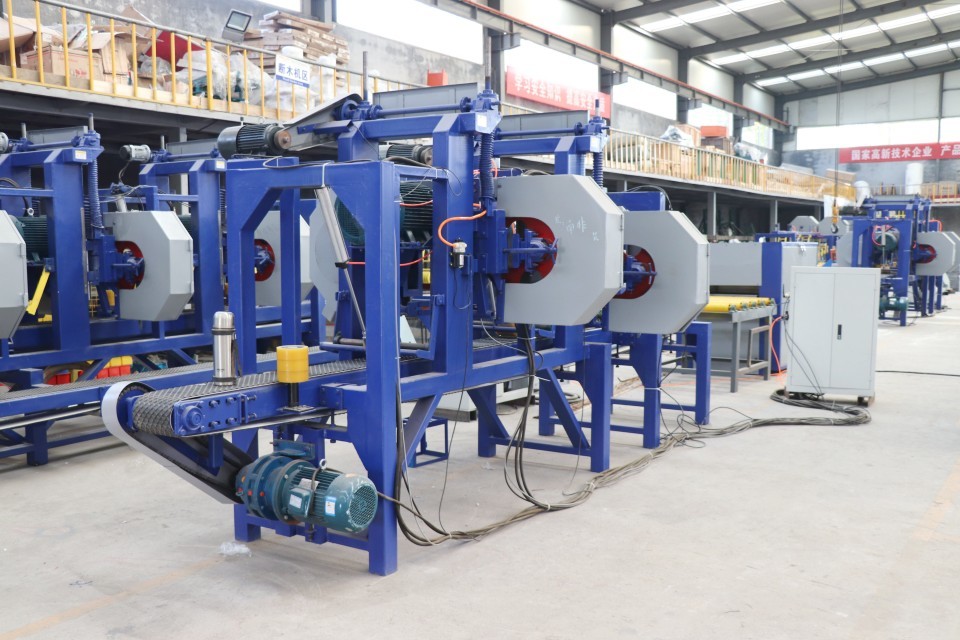

6 heads band resaw

Multiple Heads Horizontal Resaw Bandsaw 700mm Saw Wheel Diameter

2 heads band resaw

Multiple Heads Horizontal Resaw Bandsaw 700mm Saw Wheel Diameter

Container Loading

Multiple Heads Horizontal Resaw Bandsaw 700mm Saw Wheel Diameter

Related Saw Machines

TWIN BANDSAW FOR LOG EDGES CUTTING

Designed to receive logs and make two vertical cuts removing a slab from either side of the log.

· Ideal to cut pine, eucalyptus, and teak.

· High-precision cutting.

· Laterally-supported chain.

· High-production continuous feed system.

· Produces up to 4,000 m³ per month.

· Highly efficient use of wood, with the finest cut on the market.

· Motorization and control panel included.

· Automatic feed

Technical Specifications:

Technical data	SLS350	SLS500
Maximum log diameter	350mm	500mm
Minimum log diameter	100mm	100mm
Wood length	1000 to 3000mm	1000 to 3000mm
Feed speed	9-25m/min (inverter)	9-25m/min (inverter)
Conveyor length	7000mm	3500mm x 2
Band wheel diameter	700mm	760mm
Width of saw blade	50-80mm	50-100mm
Length of saw blade	4850	5200mm
Thickness of saw blade	0.9mm	0.9mm
Saw motor	2x18.5kw	2x22kw
Feed motor	5.5kw	4kw x 2
Sawn sizing control	Touching screen auto setworks	Touching screen auto setworks

Photos

Product Tags:

Multiple Heads Horizontal Resaw Bandsaw

700mm Horizontal Resaw Bandsaw

700mm Saw Wheel Resaw Bandsaw

Multiple Heads Horizontal Resaw Bandsaw 700mm Saw Wheel Diameter
