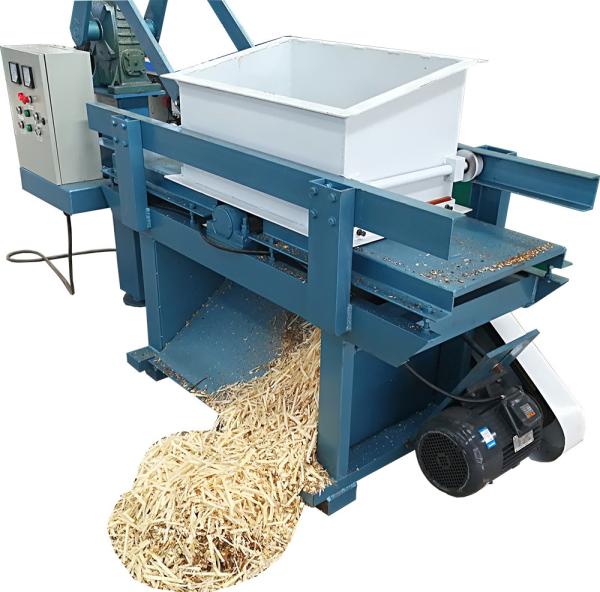

Wood Shaving Machine

• Process wood sticks,twigs,branches,wood scraps into shaving.
• Adjust the size and thickness of the wood shaving.
• It is the material for Plywood,furniture or paper factory.
• Add as filler to prevent damage when transport some fragile items.
• Use as nest shavings filler in poultry or animal breeding.
• Bio-energy ignition material.

• Technical Specifications:




  Model	SHBH500-2	SHBH500-4	SHBH500-6
  Processing wood max. length(mm)	800	1400	1400
  Processing max. width/diameter(mm)	500	500	500
  Shaft quantity	2	4	6
  Blade (pcs)	8	16	24
  Motor speed (rpm)	3500	3500	3500
  Bin length (mm)	800	1400	1400
  Total Motor power (kw)	10.5KW	23.25KW	30.75KW
  Shaving depth (mm)	0.2-1	0.2-1	0.2-1
  Shavings output	500KG/H	1000KG/H	1500KG/H
  Machine weight	950kgs	1800kgs	2200kgs
  1,With one set of blades includes; 2, with pneumatic capping included, which can improve working capacity;



• Blade

•




  Optional Parts- conveyor for shavings





  End Wood Shavings





  Export pallet Packing






  Screw Shaft Wood Shaving Machine for pets animals


  Model	SHBH500-2-L	SHBH500-4-L	SHBH500-6-L
  Processing wood max. length(mm)	800	1400	1400
  Processing max. width/diameter(mm)	500	500	500
  Shaft quantity	2	4	6
  Blade (pcs)	84pcs/shaft	84pcs/shaft	84pcs/shaft
  Motor speed (rpm)	3500	3500	3500
  Bin length (mm)	800	1400	1400
  Total Motor power (kw)	10.5KW	23.25KW	30.75KW
  Shaving depth (mm)	0.1-0.5mm adjustable	0.1-0.5mm adjustable	0.1-0.5mm adjustable
  Shavings output	300KG/H	700KG/H	1000KG/H
  Machine weight	950kgs	1800kgs	2200kgs
  1,With one set of blades includes; 2, with pneumatic capping included, which can improve working capacity;










Company  was set up in 1985, specialized in R/D, manufacture and export of wood-working machines to customers around the world. Currently our main running items are as below:

1. Portable Horizontal Band Saws,
2. CNC Vertical Band Saws,
3. Circular Saws (Angle Circular Saws with Double Blades and Twin Blades Saws, etc)
4. Debarkers & Chippers,

5. Large Size Heavy Duty Horizontal Band Saws,

6. Wood Shaving Machines,
7. Thicknesser/Planer and Moulder
8. Edge Banding Machine/Sanding Machine
9. Chainsaws,
10. Wood Chipper/Crusher,
11. Band Saw Blades and Circle Blades.

12.Pallet Nailing Machine

All the above machines can be powered with Electric or Diesel, and you can choose the manual or automatic way as per your requirements.

Working video link: https://www.youtube.com/channel/UC40G3W5PDYvMBTNjW3x4uug
