Twin heads Vertical Band Resaw Industrial Sawmill Equipment Log Sawing Machine

Product Categories

Weifang Jiuyi Information technology co., LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Ask Lasest Price
Brand Name :	SH
Certification :	ISO9001
Model Number :	SLS350, SLS500
Price :	US $12,000 - 140,000 / Set
Delivery Time :	within 20 days
Payment Terms :	T/T or L/C at sight, Western Union
Supply Ability :	500sets/year

Add to Cart

This line is deigned for Cutting log diameter 100-400MM,Log length 3500MM

	Control platform
	Overall size	3000*1500mm
	display	LCD Monitor
	Operation	distant control
	Wood loading rack
	length of conveyor	4000mm
	width of conveyor	2500mm
	feeding mode	inverter feeding by chain
	motor power	3KW
	log loading	Pneumatic
	Log rolling & guiding conveyor belt
	rolling log max. length	4000mm
	feeding mode	inverter speed adjustable
	motor power	6kw
	Operation	distant control

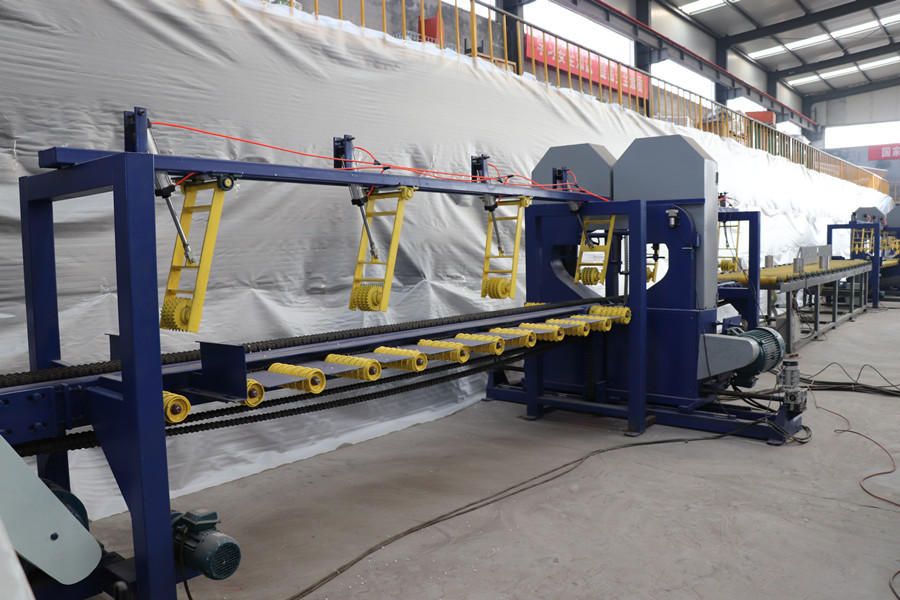

Twin Vertical Saw for round logs

1. Vertical cutting to process wood logs into square wood log.

2. Frequency variable feeding speed

3. Big size band wheel to saw wood logs

Twin heads Vertical Band Resaw Industrial Sawmill Equipment Log Sawing Machine

Model	SLS350	SLS500
Maximum sawing log diameter (mm)	350	500
Minimum sawing log diameter (mm)	100	100
Cutting length (mm)	1000-3000	1000-3000
Band wheel dia.(mm)	700mm	760mm
Feeding speed	9-25m/min	9-25m/min
Feeding conveyor length	3500mm	3500mm
Outlet conveyor length	3500mm	3500mm
Main motor of saw	2x 18.5kw	2x22kw
Feeding motor	5.5kw	4kw x2
Band saw blade width	50-80mm	50-100mm
Band saw blade thickness	0.9-1.1mm	0.9-1.1mm
Touching screen sets sawn sizes and digital display; Variable frequency speed adjustable feeding speed

Roller Conveyor with Centralize Adjustment
	length	6000mm
	width	1000mm
	power	2.2kw
	Centeralise control	pneumatic

SLSP400 Twin Bandsaw for log in plat bottom
	sawing max. diameter	400mm
	sawing min. diameter	150mm
	sawing length	800-3000mm
	saw wheel diameter	700mm
	sawing speed	9-25meters/min
	main motor power	18.5kw x 2sets
	sawn size settting	CNC touching screen

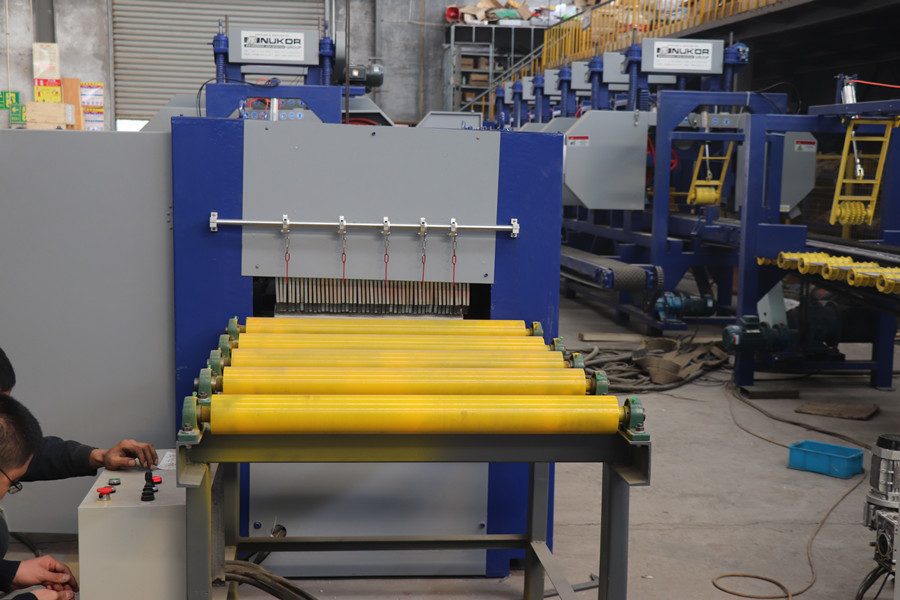

DT300-5 Multiple Heads Band Saw Machine
	sawing max. width	300mm
	sawing max. thickness	300mm
	main motor power	15KW X 5 sets
	feeding	Inverter speed adjustable
	control	control cabinet

Twin heads Vertical Band Resaw Industrial Sawmill Equipment Log Sawing Machine
