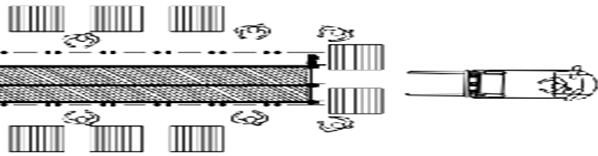

Log processing producton line of Twin Bandsaw + planks cutting Multiple Blades Ripsaw

(diameter 500mm, length 3meters)

Technical Parameter

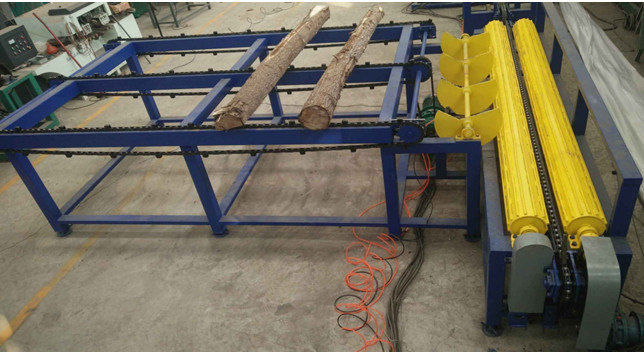

Loading Deck
Log Length	4000mm
Width	2000mm
Feeding Speed	Variable Frequency Speed Adjustable
Motor	5.5KW
Feeding Speed	frequency speed adjustable
Feeding	Pneumatic
Feeding model	chain

Log Rotation And Feeding Belt
Log Length	4000mm
Feeding Model	Variable Frequency Speed Adjustable
feeding speed	frequency speed adjustable
Motor Power	3KW*2
Control Model	Remote Control

SLS500 First Log Cutting Twin Vertical Band Saw
Max Cutting Log Diameter	500mm
Min Cutting Log Diameter	100mm
Log Length	800-3500mm
Saw Wheel Diameter	700mm
Cutting Speed	9-25m/min
Motor power	22KW *2
Centralise Model	Touch Screen Digital Control

Automatic Rotation Centralise Roller Conveyor
Conveyor Length	6000mm
Conveyor Width	1000mm
Motor Power	2.2KW
Centralise Model	Pneumatic

200-400 Heavy Duty Log Cutting Multiple Blades Sawmill
Sawing max. width	400mm
Sawing max. thickness	200mm
sawing speed	10-25m/min
Main Motor power	45KW*2
Feeding Motor	2.2KW
Sawing blade quantity	2-10 pieces
Saw Blade Diameter	355mm
Variable Frequency Speed Adjustable Feeding,
Axles Center Water Cooling System,

Slab Slop Conveyor
Length	3000mm
Width	2500mm
Motor	2.2KW

BP300 Heavy Slab Cutting Multiple Blades Horizontal Circular Saw
Max Cutting Width	300mm
Max. sawing thickness	80mm
Feeding Speed	frequency speed adjustable
Motor	15KW*2

500 High Speed Multiple Blade Rip Sawmill
Max Cutting Plank Width	500mm
Max Cutting Plank Thickness	50mm
Circular Saw Blade Quantity	1-3 Pieces
Motor Power	22kw

Conveyor Belt
160-400 Conveyor Belt	600mm*8000mm,3KW
BP300 Conveyor Belt	600mm*12000mm,3KW

chain conveyor
length	20000mm
width	1800mm
Motor Power	5.5KW

Company  was set up in 1985, specialized in R/D, manufacture and export of wood-working machines to customers around the world. Currently our main running items are as below:

1. Portable Horizontal Band Saws,
2. CNC Vertical Band Saws,
3. Circular Saws (Angle Circular Saws with Double Blades and Twin Blades Saws, etc)
4. Debarkers & Chippers,

5. Large Size Heavy Duty Horizontal Band Saws,

6. Wood Shaving Machines,
7. Thicknesser/Planer and Moulder
8. Edge Banding Machine/Sanding Machine
9. Chainsaws,
10. Wood Chipper/Crusher,
11. Band Saw Blades and Circle Blades.

12.Pallet Nailing Machine

All the above machines can be powered with Electric or Diesel, and you can choose the manual or automatic way as per your requirements.
