Auto Feed log multi blade saw machine/Multiple blades ripsaw cutting mill for planks

Product Categories

Weifang Jiuyi Information technology co., LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Ask Lasest Price
Brand Name :	SH
Certification :	ISO9001
Model Number :	SHYM200,SHYM250, SHYM300, SHYM350,SHYM400,SHYM450
Price :	US $3,000 - 25,000 / Set
Delivery Time :	within 25 days
Payment Terms :	T/T or L/C at sight, Western Union
Supply Ability :	1000sets/year

Add to Cart

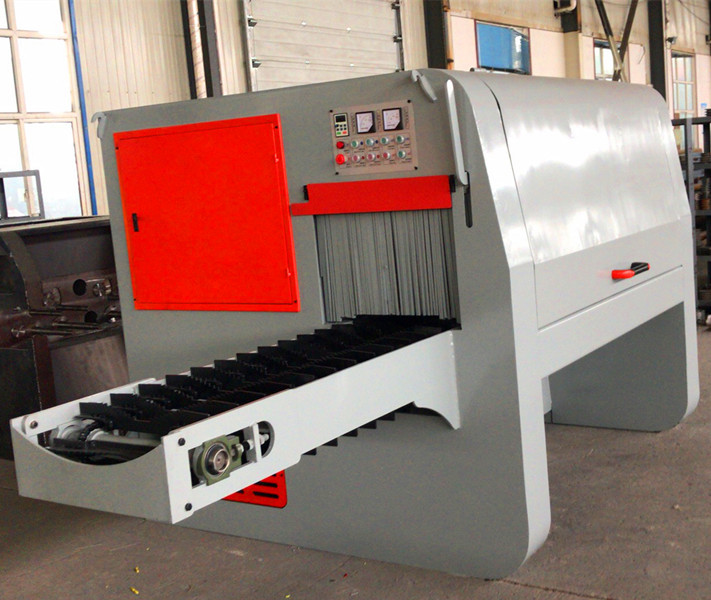

Multi blades Ripsaw for Round Log Cutting

1.Cut logs into planks at several pieces per time.

2.With log centering feeding conveyor

3.Automatic controlling

Specifications:

Model	SHYM150	SHYM200	SHYM240	SHYM260
Sawing log diameter	20-150mm	60-200mm	80-240mm	100-260mm
Min sawing log length	600mm	600mm	600mm	600mm
Main motor power	18.5KW X 2	22KW X2	30KW X2	30kw , 37kw
Feeding motor	1.5KW	1.5KW	1.5KW	1.5KW
Saw blade diameter	255mm	305mm	355mm	380mm
Weight	1570kg	1720kg	2200kgs	2300kgs
Model	SHYM285	SHYM300	SHYM330	SHYM340
Sawing log diameter	130-285mm	150-300mm	150-330mm	150-340mm
Min sawing log length	600mm	600mm	600mm	600mm
Main motor power	30kw, 37kw	37KW X 2	37KW X 2	45kw, 55kw
Feeding motor	2.2KW	2.2KW	2.2KW	2.2KW
Saw blade diameter	405mm	405mm	455mm	480mm
Weight	2350kg	2450kg	2550kg	2650kg
Model	SHYM360	SHYM400	SHYM430	SHYM480
Sawing log diameter	170-360mm	180-400mm	200-430mm	250-480mm
Min sawing log length	600mm	600mm	600mm	600mm
Main motor power	55KW X2	55KW X 2	75KW X 2	75KW X 2
Feeding motor	2.2KW	2.2KW	2.2KW	2.2KW
Saw blade diameter	500mm	550mm	600mm	650mm
Weight	2680kg	3500kg	3880kg	4100kg
Remarks: Main motor power can be changed as customer needs ; The multi ripsaw is with inverter auto feeding Blade cooling method: shaft center spraying water to cool

Auto Feed log multi blade saw machine/Multiple blades ripsaw cutting mill for planks

1.Cut planks into smaller wood boards at several pieces per time.

2.Automatic controlling

Auto Feed log multi blade saw machine/Multiple blades ripsaw cutting mill for planks
