    Dia 20mm-320mm Wood Debarker 37Kw Tree Debarking Equipment

    Wood Ring Debarker Machine Wood Tree Debarker For Sale, Log debarking Machine


    Single Roll Log Debarker

    Introduction:

    • The log debarker machine is used to take off the skins of round logs .
    • Processing log max. diameter : 320mm
    • Processing log max. length: 9meters
    • Peeling rate:98%

    Specification:

    ModelSHBP6000SHBP9000
    Capacity Ton/Hour5-1010-15
    Motor Power37KW45KW
    Log Diameter15-320mm15-320mm
    Debarking Rate98%98%
    Max Log Length6000mm9000mm
    Weight45

    Dia 20mm-320mm Wood Debarker 37Kw Tree Debarking Equipment

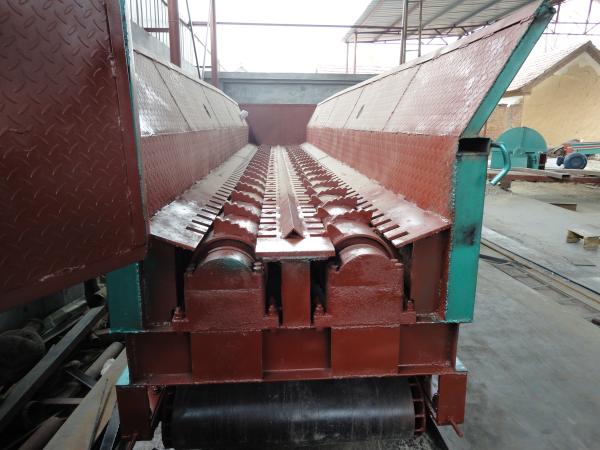

    Double Rolls Log Debarker

    ModelSHBPD4500SHBPD6000SHBPD9000
    Capacity TON/HOUR3-65-1010-15
    Motor Power7.5kw*211*215*2
    Log Diameter50-250mm50-250mm50-250mm
    Debarking Rate98%98%98%
    Max Log Length4500mm6000mm9000mm
    Overall Size5.8*1.6*27.5*1.6*211*1.6*2
    Weight445

    Dia 20mm-320mm Wood Debarker 37Kw Tree Debarking Equipment

    Dia 20mm-320mm Wood Debarker 37Kw Tree Debarking Equipment

    Ring Type Log Debarker

    ModelSHHB220SHHB260SHHB320
    Blade Disk Diameter560MM560MM560MM
    Blade Quantity444
    Log Diameter60-220MM100-260MM150-320MM
    Feeding Speed M/MIN8.38.38.3
    Debarking Rate98%98%98%
    Motor Power6.2KW6.2KW6.2KW

    Dia 20mm-320mm Wood Debarker 37Kw Tree Debarking Equipment

    Related Products

    Wood Shaving Machine

    Technical Specifications:


    ModelSHBH500-2SHBH500-4SHBH500-6
    Processing wood max. length(mm)80014001400
    Processing max. width/diameter(mm)500500500
    Shaft quantity246
    Blade (pcs)81624
    Motor speed (rpm)350035003500
    Bin length (mm)80014001400
    Total Motor power (kw)10.5KW23.25KW30.75KW
    Shaving depth (mm)0.2-10.2-10.2-1
    Shavings output500KG/H1000KG/H1500KG/H
    Machine weight950kgs1800kgs2200kgs

    1,With one set of blades includes;

    2, with pneumatic capping included, which can improve working capacity;
