    Double Spindle Multiple Blades Rip Saw, Multi RipSaw Production Line for Round log Cutting

    Ask Lasest Price
    Brand Name : SH
    Certification : ISO9001
    Model Number : SHYM200,SHYM250, SHYM300, SHYM350,SHYM400,SHYM450
    Price : USD3000-USD15000/set
    Delivery Time : within 15 days
    Payment Terms : T/T or L/C at sight, Western Union
    Supply Ability : 100sets/month
    • Product Details
    • Company Profile

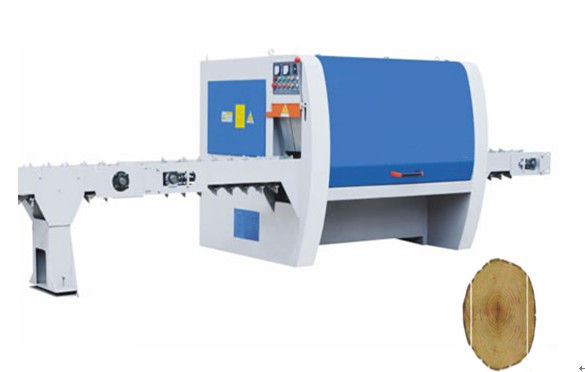

    Double Spindle Multiple Blades Rip Saw, Multi RipSaw Production Line for Round log Cutting

    Multi blades Ripsaw for Round Log Cutting

    1.Cut logs into planks at several pieces per time.
    2.With log centering feeding conveyor
    3.Automatic controlling


    Specifications:

    ModelSHYM200SHYM250SHYM300
    Sawing log diameter80-200mm120-250mm150-300mm
    Min sawing log length600mm600mm600mm
    Blade coolingShaft center spraying water to cool
    Main motor power22KW X 230KW X237KW X2
    Feeding motor1.5KW1.5KW2.2KW
    Saw blade diameter305mm355mm405mm
    Weight2000kg2500kg2800kg
    ModelSHYM350SHYM400SHYM450
    Sawing log diameter200-350mm250-400mm300-450mm
    Min sawing log length600mm600mm600mm
    Cooling methodShaft center spraying water to cool
    Main motor power45KW X255KW X 255KW X2
    Feeding motor2.2KW2.2KW2.2KW
    Saw blade diameter480mm520mm600mm
    Weight3200kg3500kg3800kg

    Remarks:

    Main motor power can be changed as customer needs ;

    The multi ripsaw is with inverter auto feeding


    Double Spindle Multiple Blades Rip Saw, Multi RipSaw Production Line for Round log Cutting


    Production line of Round Log Multi Blades Ripsaw and Lumber Multi Ripsaw

    Log Cutting Multiple Blades Sawmill
    Max Cutting Log Diameter450mm
    Min Cutting Log Diameter200mm
    Log Length800-3000mm
    Cutting Speed9-25m/min
    Motor power75KW *2
    Centralise ModelTouch Screen Digital Control

    Double Spindle Multiple Blades Rip Saw, Multi RipSaw Production Line for Round log Cutting

    Automatic Rotation Centralise Roller Conveyor
    Conveyor Length6000mm
    Conveyor Width1000mm
    Motor Power2.2KW
    Centralise ModelPneumatic

    Double Spindle Multiple Blades Rip Saw, Multi RipSaw Production Line for Round log Cutting

    SH200-400 Log Cutting Multiple Blades Sawmill
    Sawing max. width400mm
    Sawing max. thickness200mm
    Sawing speed10-25Meter/minute
    Main Motor power45KW*2
    Feeding Motor2.2KW
    Saw blade quantity2-10 pieces
    Saw Blade Diameter355mm
    Variable Frequency Speed Adjustable Feeding,
    Axles Center Water Cooling System,

    Double Spindle Multiple Blades Rip Saw, Multi RipSaw Production Line for Round log Cutting

    Slab Slop Conveyor
    Length3000mm
    Width2500mm
    Motor2.2KW

    Double Spindle Multiple Blades Rip Saw, Multi RipSaw Production Line for Round log Cutting

    Slab Cutting Multiple Blades Horizontal Circular Saw
    Max Cutting Width300mm
    Max. sawing thickness80mm
    FeedingFrequency variable auto feeding
    Motor15KW*2

    Double Spindle Multiple Blades Rip Saw, Multi RipSaw Production Line for Round log Cutting

    500 High Speed Multiple Blade Rip Sawmill
    Max Cutting Plank Width500mm
    Max Cutting Plank Thickness50mm
    Circular Saw Blade Quantity1-3 Pieces
    Motor Power22kw

    Double Spindle Multiple Blades Rip Saw, Multi RipSaw Production Line for Round log Cutting

    Conveyor Belt
    160-400 Conveyor Belt600mm*8000mm,3KW
    BP300 Conveyor Belt600mm*12000mm,3KW

    Double Spindle Multiple Blades Rip Saw, Multi RipSaw Production Line for Round log Cutting

    Chain Conveyor
    Length20000mm
    Width1800mm
    Motor power5.5KW

    Double Spindle Multiple Blades Rip Saw, Multi RipSaw Production Line for Round log Cutting
