Tree Cutting Machine Wooden Chipper/Crusher Price, Log Chipping Machine

Ask Lasest Price
Brand Name :	SH
Certification :	ISO9001
Model Number :	SH1600-600, SH1400-600, SH1300-600, SH1300-800
Price :	US $18,000-4,9000 / Sets
Delivery Time :	within 20 days
Payment Terms :	T/T or L/C at sight, Western Union
Supply Ability :	300 sets/Year

Add to Cart

Product Details
Company Profile

Tree Cutting Machine Wooden Chipper/Crusher Price, Log Chipping Machine

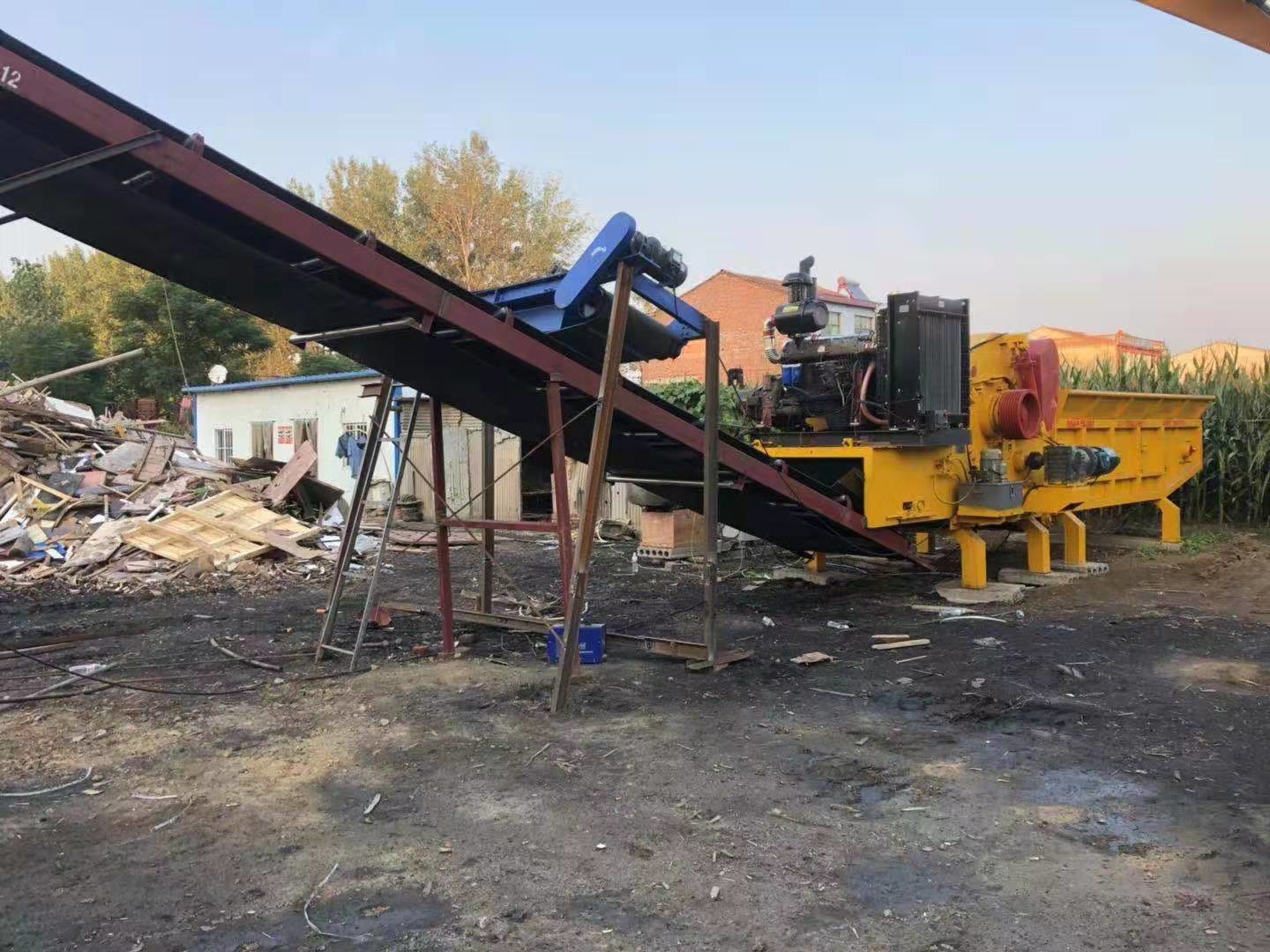

SH1300-600 Series Wood Crusher Machine is mainly used for building film faced plywood, wasted wood pallet, Tree bark, Slabs, off cuts, branches, straw and so on. It can work together with the baler breaker. This machine includes Host, chain plate, feeding & outlet conveyor system, intelligent electrical control. Chain Plate Feeding conveyor feeds raw materials more freely, no need changing the belt all the time. It is with reasonable structure, simple operation, high automatic level, and high safety coefficient and production capacity, less manpower, easy maintenance. It is the ideal equipment for biomass power generation enterprises.

Technical Parameter Of Host System Equipment

Model	SH1300-600
Feeding Inlet	1300*600MM
Blade Roller Diameter	850MM
Blade Roller Speed	850RPM
Capacity	15-20T/Hour
YG8 Hammer Blade Quantity OR Blades	22 pcs hammers or 2sets blades
Max Processing Wood Diameter	450MM
Electric motor power	160KW
Wood Chipper Size	20-40MM
Working Life Of THE Hammer Blades	4000T-6000T

Technical Parameter Of Feeding System

Model	SH1300-600
Slot Chain Plate Feeding Conveyor	1 Set
Feeding Motor Power	7.5KW+11KW
Chain Plate Width	1260MM
Conveyor Length	6000MM
Feeding Speed	2-18M/Min
Chain Material	16Mn
Position Limited Wheel	5
Gear Box	Hard Teeth Faces

Technical Parameter Of Discharging System

Model	SH1300-600
Outlet Conveyor Belt	1Set
First Outlet Motor	4KW With Gear Box
Second Outlet Motor	5.5KW With Gear Box
Conveyor Material	14-16# Channel/ Square Tube
Conveyor Length*Width	10m*1m
Conveyor Material	Nylon 4 Layer
Outlet Height	3800-4500MM

Intelligent Electronic Control System

Model	SH1300-600
Large Control Cabinet	Ground
Host Start Model	Soft Start
Feeding Speed Control Model	Variable Frequency
Electrical Control	Control Cabinet + Remote Control

High Efficiency Hydraulic System

Model	SH1300-600
Control Model	Solenoid Valve
Hydraulic Oil Pump	3KW
Hydraulic Oil Tank	120L
