Brand Name : | SH |
Certification : | ISO9001 |
Model Number : | MJ1200 MJ1500 MJ2000 MJ2500 |
Price : | US $12,000 - 31,000 / Set |
Delivery Time : | within 15 days |
Payment Terms : | T/T, Western Union |
Supply Ability : | 1500sets/year |

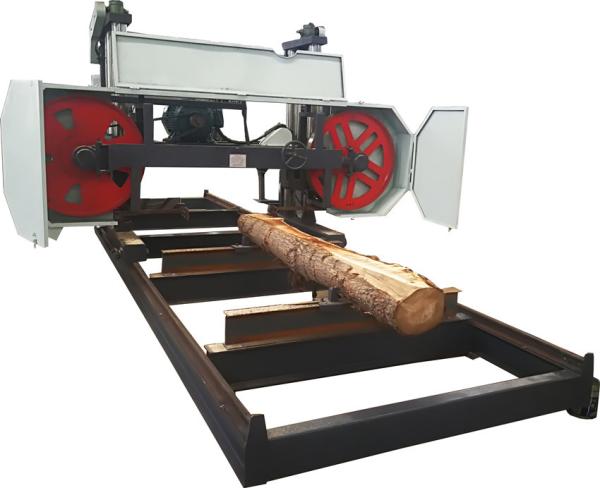

Big bandsaw wheels heavy duty band sawmill, Horizontal saw mill machine for sale
Heavy Duty Large Size Horizontal Band Sawmill
1. Combined with the current automation technology, the heavy duty horizontal band saw machine is a high quality product .
2. It solves the difficulty of sawing lagrge diameter wood in the past and applies for national patents. A great many products are exported to Gabon, Angola , Fiji and Southeast Asian Countries.
3. Diesel engine powered big sawmill is workable
Structure Features:
1.High quality parts, SKF bearings from Sweden
2.Variable frequency speed adjustable walking forward/back. The walking speed is 1-20meters/minute .
Technical specifications:
Technical Parameter | MJ1200 | MJ1500 | MJ2000 | MJ2500 |
Max Sawing Wood Diameter (MM) | 1200 | 1500 | 2000 | 2500 |
Saw wheel diameter (MM) | 900 | 1000 | 1100 | 1100 |
Sawing thickness (MM) | 400 | 450 | 480 | 480 |
Max Sawing wood Length (MM) | 10000 | 10000 | 10000 | 10000 |
Main Motor Power (KW) | 30 | 37 | 45 | 55 |
Walking motor (kw) | 3kw | 3kw | 3kw | 3kw |
Total Weight (KG) | 3800 | 4500 | 5000 | 5500 |
Electric & Screw Band Saw Blade Tension |
![]() |
