Wood Cutting Hydraulic Automatic Band Saw Machine, Auto Sawmill Production line for big logs

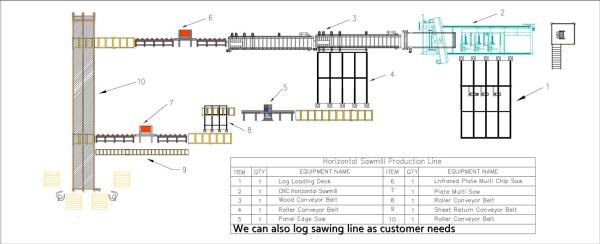

Log Sawing Automatic Production Line:Hydraulic Horizontal Band Sawmill + Multi Blades Ripsaw

For log max. diameter 900mm, length 5meters

Specification:

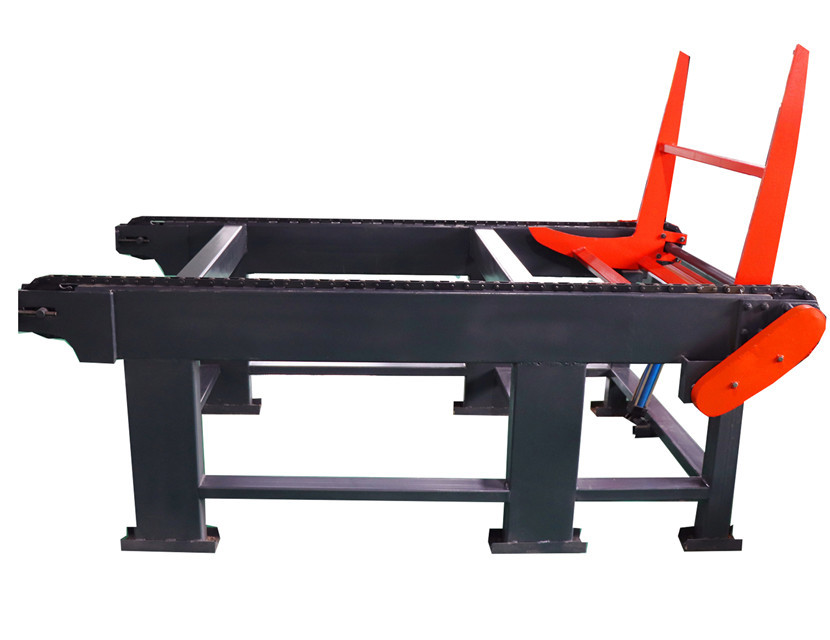

1.log loading deck
Conveyor length		5meters
Conveyor total width		4meters
Feeding type		Frequency auto feeding & speed adjustable
Loading mode		Pneumatic
Feeding mode		Chain feeding
2.MJH1000E Hydraulic Horizontal Band Sawmill
Sawing log max. diameter	1000mm
Sawing log max.length	5meters
Saw wheel diameter	700mm
sawn board thickness range	2-400mm
Main motor power	37kw
Hydraulic chain rotation	2sets
Blade tensioning	Electrical
Sawn sizes setting	PLC touching screen
Saw head walking	Frequency auto feeding
Machine length	7500mm
3.Roller Conveyor
Screw roller conveyor length	10meters
Conveyor width	1200mm
Motor power	5.5kw
4. Chain conveyor
Conveyor width	4000mm
Conveyor length	4000mm
Chain quantity	4pcs
Motor power	5.5kw
5.Board Twin Blades Edger Saw
Max. sawing width	900mm
Min. sawing width	50mm
Sawing thickness range	20mm-70mm
Sawing speed	20-25m/min
Main motor power	7.5kw x 2
Feeding conveyor size	L2000mm*W800mm
Outlet conveyor size	L9000mm*W800mm
6. HW800 Infrared Multi Blades Chip Saw
Sawing max. width	800mm
Sawing thickness range	15-50mm
Motor power	18.5kw
Feeding conveyor	L2500mm*W800mm
Outlet conveyor	L9000mm*W800mm
7. SHBC80-300 Multi Blades Rip Saw
Max. sawing wood width			300mm
Max sawing wood thickness			80mm
Min Sawing wood length			600mm
Main motor power			22kw x 2
Feeding Conveyor			L2000mm*W800mm
Outlet conveyor			L8000mm*W800mm
Blade cooling type			Shaft center water spraying
Blade diameter			180mm
Feeding			Frequency auto feeding
8. Chain Conveyor
Conveyor length	4000mm
Conveyor width	4000mm
Chain quantity	4pcs
Motor	5.5kw
9.Roller Conveyor
Screw roller conveyor length	6000mm
Conveyor width	600mm
Motor power	3kw
10.Chain Conveyor Belt
Conveyor width	4000mm
Conveyor length	10meters
Chain quantity	4pcs
Electric motor	5.5kw

Company  was set up in 1985, specialized in R/D, manufacture and export of wood-working machines to customers around the world. Currently our main running items are as below:

1. Portable Horizontal Band Saws,
2. CNC Vertical Band Saws,
3. Circular Saws (Angle Circular Saws with Double Blades and Twin Blades Saws, etc)
4. Debarkers & Chippers,

5. Large Size Heavy Duty Horizontal Band Saws,

6. Wood Shaving Machines,
7. Thicknesser/Planer and Moulder
8. Edge Banding Machine/Sanding Machine
9. Chainsaws,
10. Wood Chipper/Crusher,
11. Band Saw Blades and Circle Blades.

12.Pallet Nailing Machine

All the above machines can be powered with Electric or Diesel, and you can choose the manual or automatic way as per your requirements.

Working video link: https://www.youtube.com/channel/UC40G3W5PDYvMBTNjW3x4uug
