Brand Name : | SH |
Model Number : | QJ1350, PQ1300-4 |
Certification : | ISO9001 |
Price : | US $4,500 - 8,500 / Set |
Payment Terms : | T/T, Western Union |
Supply Ability : | 1500sets/year of Pallet angle cutting machine |
Delivery Time : | within 15 days |

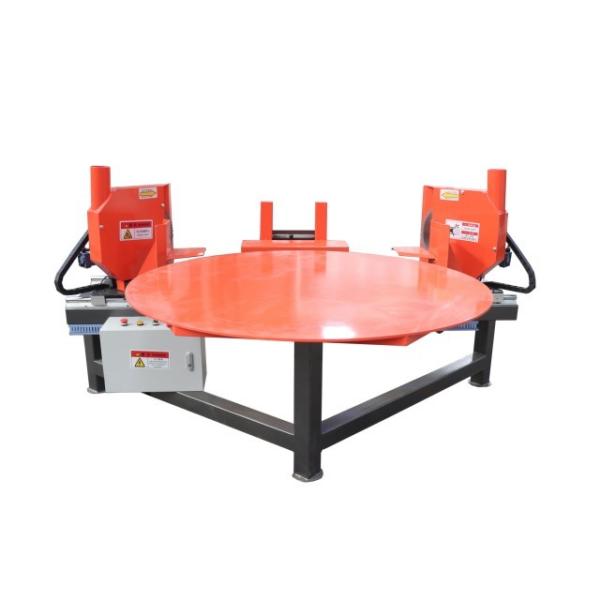

Tray Corner Cutter
Model | QJ1350 |
Processing Pallet Width | 750-1350mm |
Processing Pallet Length | 750-1350mm |
Electric Power | 4.4kW |
Weight | 400kg |

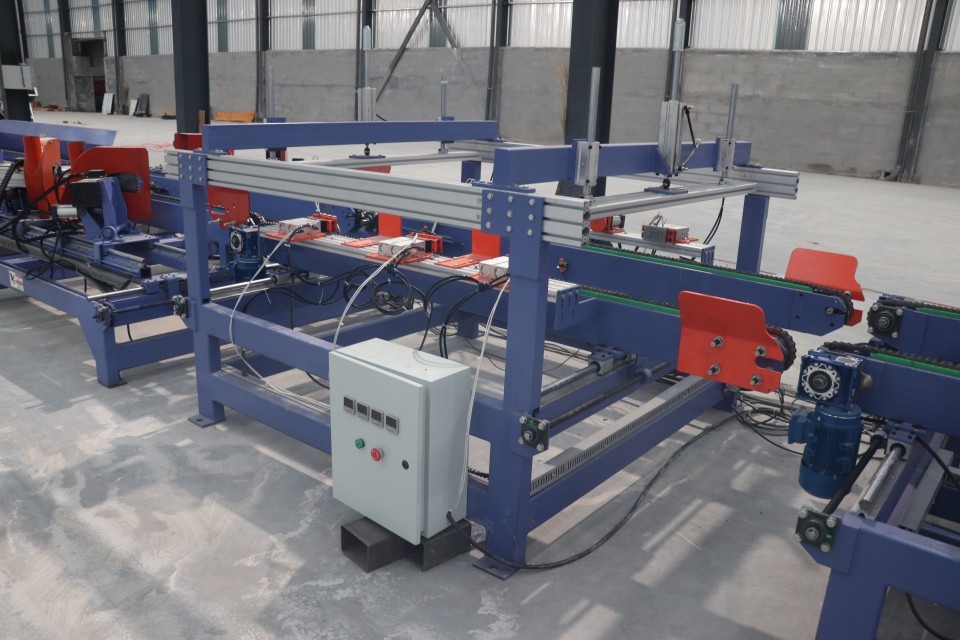

Pallet angle cutting machine
Model | PQ1300-4 |
Processing size | 800-1300mm |
Circular saw blade diameter | 300mm |
Air pressure | 0.8MPA |
Speed | 2900R/Min |
Motor power | 8.8KW |
Control Mode | Pallet machine production line integrated supporting |
Voltage | 380V(Customized) |
Operating mode | Touch screen |
Production mode | Automatic feed/automatic Angle cutting |
Machine size | 2700*2200*1200mm |
Wood pallet storage platform
Model | CL-3000 | CL-4000 |
custom length | 3000mm | 4000mm |
Table Length | 1600mm | |
Operating speed | 5-6m/min | |
Motor power | 2.2KW | |
Control mode | Pallet machine production line integrated supporting | |
Voltage | 380V(Customized) | |
Production mode | Feeding pallet machine automatic line |
Related Machine

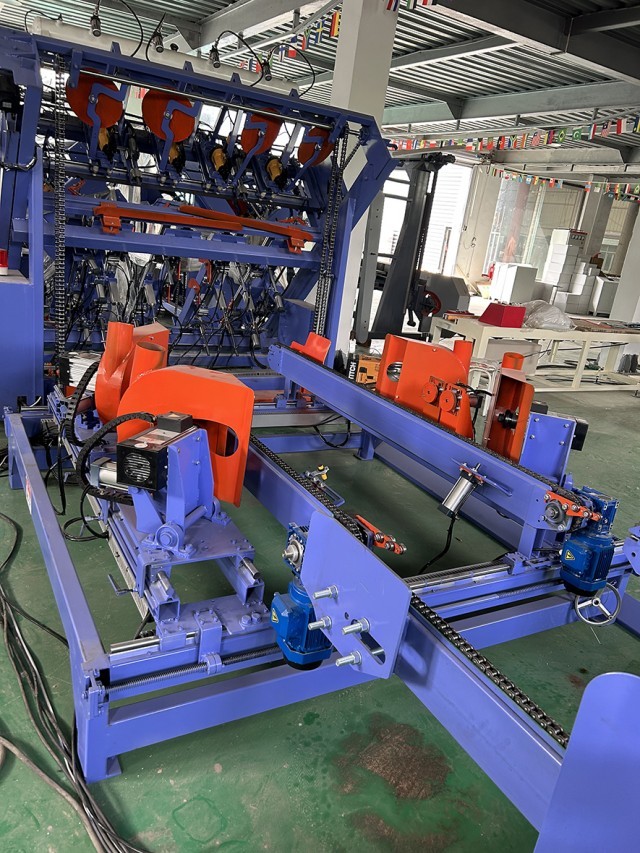

Automatic Wood Pallet Nailing Machine with Automatic palletizer
-- USA and National Style Wooden Pallets
Model | AWPN-1300 |
Wood pallet length | 600-1300mm |
Wood pallet width | 800-1300mm |
Working mode | Automatic feeding and stacking |
Operation mode | Touch screen |
Operational mode | Pneumatic operation |
Voltage and power | 220V/ 2kw Servo motor |
Air pressure | 0.8MPA |
Tank size | 0.2 cubic |
Nail gun speed | 7 times /second. |
Production efficiency | 1-2pcs /min |
Apply a nail | Less than 90mm |
Number of nail guns | 3P OR 4P |
Weight | 2000kg |
Euro Pallet Automatic Wood Pallet Making Line
![]() |
