Chainsaw Wood Log Cutter Off Machine, Portable Log Cutting Slasher
Sawmill
Wood Slasher
Wood slasher is one of the auxiliary equipment for wood working
industry,mainly used for wood company,wood working factory,man-made
plate factory,plywood factory,furniture factory and lumber
yard,also been used for cutting wood log in war
industry,construction,mining,railways and bridge building.
The slasher we produced specialized in cutting wood log.It is much
more productive than trandtional cutting ways like manunal and
chain saw.
Based on the our user,our slasher can cut a 1200mm diameter wood
log in 50 seconds,while it will take 25 minutes in manunal.
| Technical Parameter | DM1100 | DM1300 | DM1600 | DM1900 | DM2100 | DM2400 |
| Guide Plate Length(MM) | 1100 | 1300 | 1600 | 1900 | 2100 | 2400 |
| Log Diameter(MM) | 900 | 1100 | 1300 | 1600 | 1900 | 2200 |
| Motor(KW) | 3 | 3 | 4 | 4 | 5.5 | 5.5 |
| Weight(KG) | 180 | 190 | 200 | 220 | 250 | 280 |
Side Moving type
Electric Chainsaw Mill Machine
1. Easy Installation and disassemble.
2. Sawmill track can be extended
Specifications | BXLJ600 | DDLJ600 | DDLJ900 | DDLJ1500 |
Guide bar length | 18-36inch | 36inch | 42 inch | 1900mm |
Cut length (mm) | 3600 | 3500 | 3500 | 4500 |
Cut max. diameter(mm) | 600 | 600 | 900 | 1500 |
Electric motor(kw) | chainsaw | 5.5 | 7.5 | 15 |
Saw head up/down | manual | manual | manual | electric |
Saw head walking | manual | manual | manual | frequency variable |
Track length(mm) | 4800 | 4800 | 5000 | 6000 |
Total weight(kg) | 120 | 120 | 250 | 1000 |
Packing size(mm) | 1700*1200*1400 | 1700*1200*1400 | 2500*1300*1600 | 3300*1700*2200 |

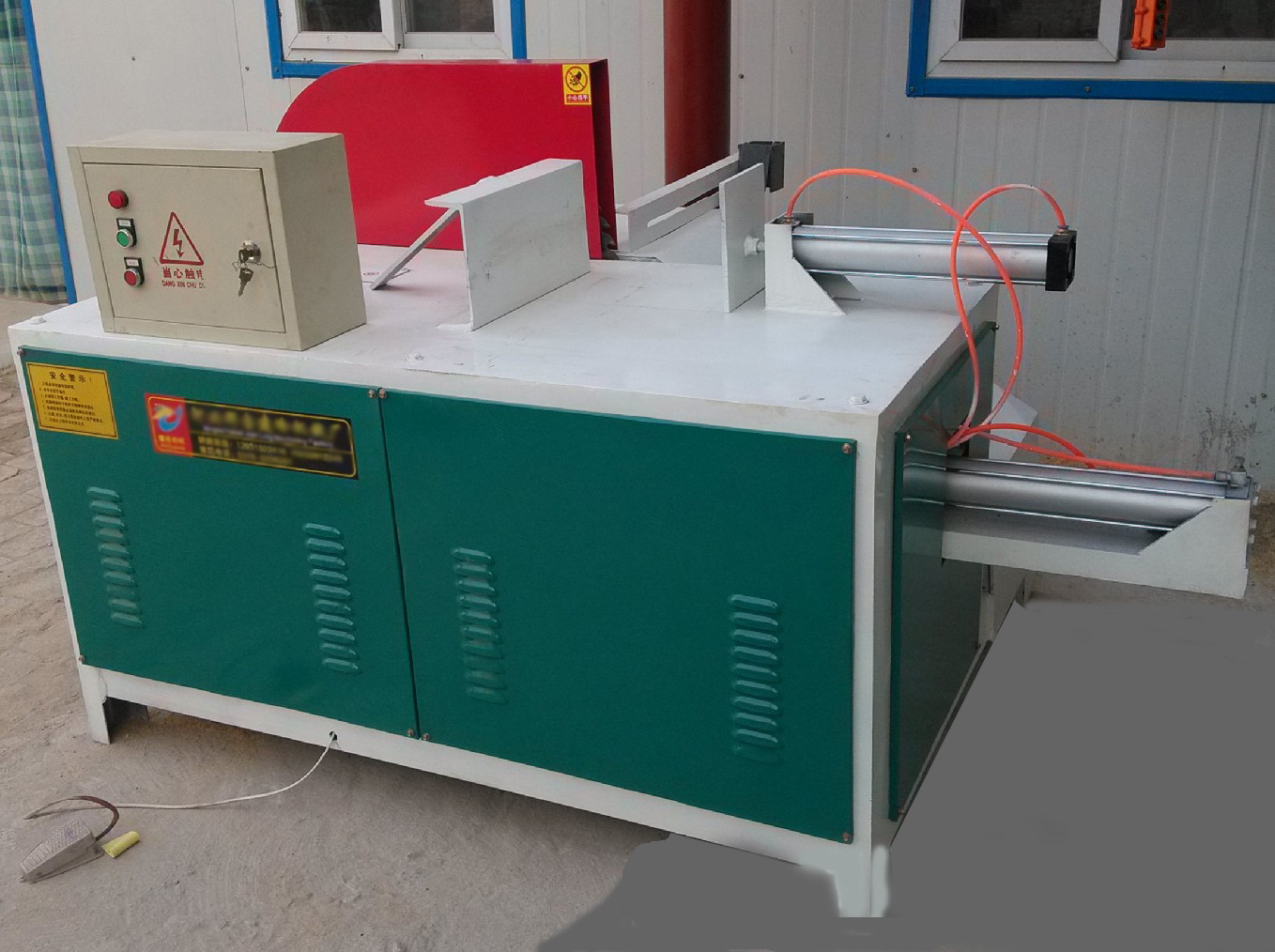

High efficient pneumatic log cut off saw
This log cut off saw is a special machine for cutting off log, can
replace the traditional wood cutting equipment. Only a person can
easily control. High stable performance, processing surface is
smooth and its tolerances within 2mm. The truncated range can be
adjusted freely
| Model | SHDJ-200 | SHDJ-250 | SHDJ-320 |
| Processing Diameter | 200mm | 250mm | 320mm |
| Main Motor | 5.5kw | 5.5kw | 7.5kw |
| Saw Blade Diameter | 500mm | 600mm | 800mm |
| Sawing length | adjustable | adjustable | adjustable |
| Stepping up wood way | pneumatic | pneumatic | pneumatic |
| Weight | 500kgs | 600kgs | 700kgs |
