    Industrial Rotary Drum Dryer Machine For Drying Biomass Sawdust Wood Chip Bamboo Shavings

    Ask Lasest Price
    Brand Name : SH
    Model Number : Φ1.2×10 ,Φ1.2×15, Φ1.5×15, Φ1.8×18 , etc
    Certification : ISO9001
    Price : US$6,100.00 - US$11,000.00/ set
    Payment Terms : T/T , Western Union
    Supply Ability : 1000sets/year
    Delivery Time : within 20 days
    • Product Details
    • Company Profile

    Industrial Rotary Drum Dryer Machine For Drying Biomass Sawdust Wood Chip Bamboo Shavings

    Wood Shavings Dryer, hot selling products Wood Shaving Machine drying machine production line


    Rotary Dryer

    • Used for wood shavings drying. It is easy usage, low cost, high performance
    • Technical data:
    Model (m)Volume/m3

    Capacity

    (ton/h)

    Feeding air max. temperature

    Main motor

    kw

    Weight

    ton

    Φ1.2×109.01-1.5700-8007.59
    Φ1.2×1511.31.5-2700-8007.511
    Φ1.5×1521.22-3700-8001518.5
    Φ1.8×1830.53-4700-80018.521.5

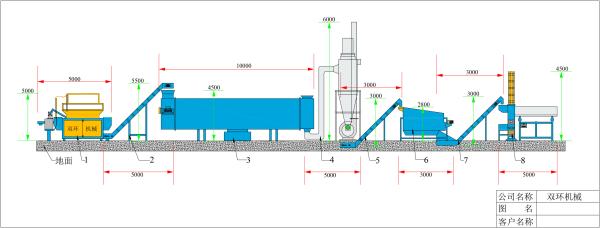

    • Image of rotary dryer

    Industrial Rotary Drum Dryer Machine For Drying Biomass Sawdust Wood Chip Bamboo Shavings

    • Image of burner - fuels can be briquette, woods/coal , natural gas

    Industrial Rotary Drum Dryer Machine For Drying Biomass Sawdust Wood Chip Bamboo Shavings


    Wood Shavings Dryer


    • Technical data
    ModelHG500HG1000
    Capacity500kg/hour1000kg/hour
    Overall size4200x1300x1500mm5100x1500x1700mm
    Inner cylinder size1000x2800x3mm1200x3600x4mm
    Electric motor3kw4kw
    GearboxZQ200ZQ250
    Electric heating power40-50KW60-80KW
    Burning coal/woods20-30kg/hour40-50kg/hour
    Burning natural gas7.8m3/hour13m3/hour
    Dehumidifying fan170w170w

    Industrial Rotary Drum Dryer Machine For Drying Biomass Sawdust Wood Chip Bamboo Shavings

    Wood Shaving Machine

    • Process wood sticks,twigs,branches,wood scraps into shaving.
    • Adjust the size and thickness of the wood shaving.
    • It is the material for Plywood,furniture or paper factory.
    • Add as filler to prevent damage when transport some fragile items.
    • Use as nest shavings filler in poultry or animal breeding.
    • Bio-energy ignition material.
    • Technical data:
    ModelSHBH500-2SHBH500-4SHBH500-6
    Max Processing wood Length800MM1400MM1400MM
    Max Processing wood Width500MM500MM500MM
    Shaft Quantity2pcs4pcs6pcs
    Blade Quantity8pcs16pcs24pcs
    Speed (r/min)350035003500
    Bucket Length (mm)80014001400
    Total Power (kw)10.5KW23.25KW30.75KW
    Shaving Depth(mm)0.2-10.2-10.2-1
    Production(KG/Hour)50010001500
    With pneumatic press cover

    Industrial Rotary Drum Dryer Machine For Drying Biomass Sawdust Wood Chip Bamboo Shavings

    Industrial Rotary Drum Dryer Machine For Drying Biomass Sawdust Wood Chip Bamboo ShavingsIndustrial Rotary Drum Dryer Machine For Drying Biomass Sawdust Wood Chip Bamboo Shavings

    Screw Spiral Shaft Wood Shaving Machine

    Industrial Rotary Drum Dryer Machine For Drying Biomass Sawdust Wood Chip Bamboo Shavings

    Industrial Rotary Drum Dryer Machine For Drying Biomass Sawdust Wood Chip Bamboo Shavings


    Related Products:

    Wood shavings baler/packaging machine

    • Technical data:
    ModelSHDB-20SHDB-1
    Main electric motor22KW22KW
    Hydraulic pump25VQ2525VQ25
    Hydraulic valveLQ32LQ32
    Hydraulic oil tankɸ140 &ɸ160ɸ80&ɸ125&ɸ63
    Electrical SystemPLC controlPLC control
    Operation systemmanual +automaticmanual +automatic
    Filter400L/min400L/min
    Cooling systemair coolingair cooling
    Heating system3kw3kw
    Oil tank500L260L
    bale size40x60x20cm350*130*60mm
    bale weight15 to 20kgs/bag1kg/bag
    Capacity60-80bags/hour200bags/hour

    Industrial Rotary Drum Dryer Machine For Drying Biomass Sawdust Wood Chip Bamboo Shavings

    Wood Wool Machine

    Industrial Rotary Drum Dryer Machine For Drying Biomass Sawdust Wood Chip Bamboo Shavings
