SH2000-1400 Large Size Mobile Wood Chipper Forestry Machinery Wood
Crusher, Wood Chipper, Wood Crusher Price
Heavy Duty Wood Chipper/Crusher Machine
- Processing raw materials:
Wood Branches,Logs,wasted wood Pallets with nails,used building
plywood with stones
Wood Stumps/ Roots,Rail Sleepers,Straw,cotton stalk.
2. Magnetic machine is workable for sucking out nails, iron
products.
3. Tehnical data:
| Model | SH 800-500 | SH 1300-600 | SH 1600-600 |
| Feeding Inlet | 800*500mm | 1300*600mm | 1600*600mm |
| Blade Roller Diameter | 850mm | 850mm | 850mm |
| Blade Roller Speed | 850RPM |
| Capacity | 10-15tons/hour | 15-20tons/hour | 25-30tons/hour |
| YG8 Hammer Blade Quantity | 16pcs | 20pcs | 28pcs |
| Knife Blade Quantity | 2groups/4pcs |
| Max. Processing Wood Diameter | 300mm | 450mm | 450mm |
| Motor Power | 110kw | 160kw | 250kw |
| Wood Chipper Size | 20-40cm(Custmized) |
| Working Life of the Hammer Blades | 4000T-5000T |
Heavy Duty Large Wood Crusher
| Model | SH2000-1000 |
| Feeding inlet size | 2000*1000MM |
| Blade roll diameter | 1400MM |
| Blade roll rotation speed | 750RPM |
| Production capacity | 70-100Ton/Hour |
| Blade quantity | 3sets/9pcs(H12 materials) |
| Processing max. Log diameter | ＜800MM |
| Power | 450KW |
| Chipper size | 30-50MM |
| Blade life | About 5000T |
| Steel plate thickness of host machine | 30mm |
4. Photos:
Electrical type
Diesel engine + generator type
With wheels for mobile usage
Hydraulic Foldable outlet conveyor

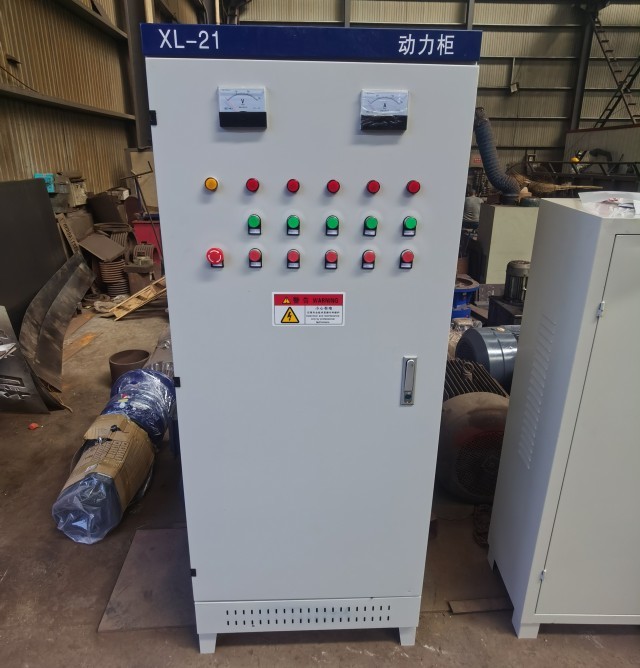

Control Cabinet

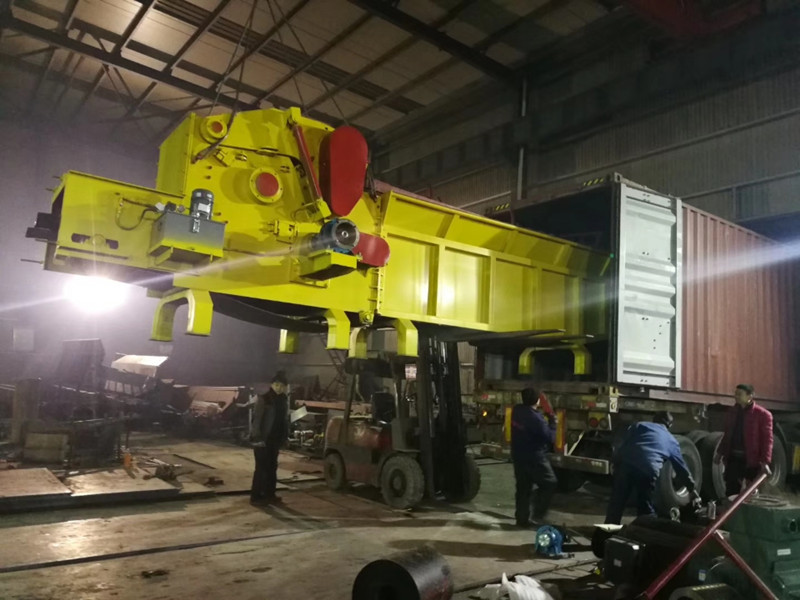

Container Loading -
Related Products:
Wood Roots Crusher/Grinder
Specification:
| Technical data | Model SH3600-1600 |
| Blade shaft size | 1600x850mm |
| Rotor diameter | 800mm |
| Blade quantity | 4 |
| Main motor power | 185KW |
| Feeding inlet diameter | 3600mm |
| Out feed conveyor | 12meters |
| Capacity | 25-30Ton/Hour |
| Weight | 18000kg |
TWIN BANDSAW FOR LOG EDGES CUTTING
Designed to receive logs and make two vertical cuts removing a slab
from either side of the log.
· Ideal to cut pine, eucalyptus, and teak.
· High-precision cutting.
· Laterally-supported chain.
· High-production continuous feed system.
· Produces up to 4,000 m³ per month.
· Highly efficient use of wood, with the finest cut on the market.
· Motorization and control panel included.
· Automatic feed
Technical Specifications:
| Technical data | SLS350 | SLS500 |
| Maximum log diameter | 350mm | 500mm |
| Minimum log diameter | 100mm | 100mm |
| Wood length | 1000 to 3000mm | 1000 to 3000mm |
| Feed speed | 9-25m/min (inverter) | 9-25m/min (inverter) |
| Conveyor length | 7000mm | 3500mm x 2 |
| Band wheel diameter | 700mm | 760mm |
| Width of saw blade | 50-80mm | 50-100mm |
| Length of saw blade | 4850 | 5200mm |
| Thickness of saw blade | 0.9mm | 0.9mm |
| Saw motor | 2x18.5kw | 2x22kw |
| Feed motor | 5.5kw | 4kw x 2 |
| Sawn sizing control | Touching screen auto setworks | Touching screen auto setworks |
Photos
