Twin Vertical Band Saw Wood Saw Mill,Woodworking Electric Vertical Bandsaw

Ask Lasest Price
Brand Name :	SH
Model Number :	SLS350, SLS500
Certification :	ISO9001
Price :	US $13,000 - 50,000 / Set
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	1000sets/year
Delivery Time :	within 20 days

Add to Cart

Product Details
Company Profile

Twin Vertical Band Saw Wood Saw Mill,Woodworking Electric Vertical Bandsaw

TWIN BANDSAW FOR LOG EDGES CUTTING

Designed to receive logs and make two vertical cuts removing a slab from either side of the log.

· Ideal to cut pine, eucalyptus, and teak.

· High-precision cutting.

· Laterally-supported chain.

· High-production continuous feed system.

· Produces up to 4,000 m³ per month.

· Highly efficient use of wood, with the finest cut on the market.

· Motorization and control panel included.

· Automatic feed

Technical Specifications:

Technical data	SLS350	SLS500
Maximum log diameter	350mm	500mm
Minimum log diameter	100mm	100mm
Wood length	1000 to 3000mm	1000 to 3000mm
Feed speed	9-25m/min (inverter)	9-25m/min (inverter)
Conveyor length	7000mm	3500mm x 2
Band wheel diameter	700mm	760mm
Width of saw blade	50-80mm	50-100mm
Length of saw blade	4850	5200mm
Thickness of saw blade	0.9mm	0.9mm
Saw motor	2x18.5kw	2x22kw
Feed motor	5.5kw	4kw x 2
Sawn sizing control	Touching screen auto setworks	Touching screen auto setworks

Photos

Twin Vertical Band Saw Wood Saw Mill,Woodworking Electric Vertical Bandsaw

Optional - slabs slope conveyor
Twin Vertical Band Saw Wood Saw Mill,Woodworking Electric Vertical Bandsaw
Optional - log loading deck

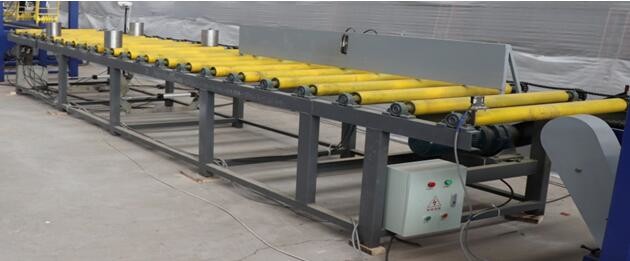

Optional -Roller conveyor

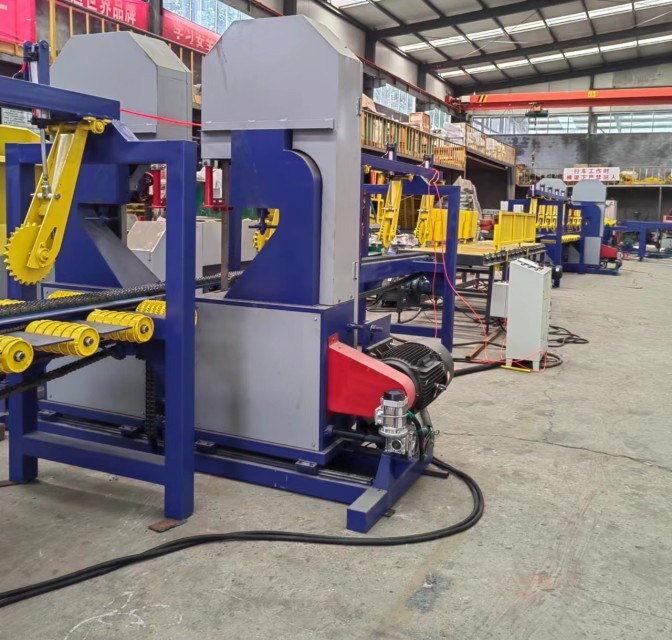

Twin bandsaw complete sawmill line

Twin Vertical Band Saw Wood Saw Mill,Woodworking Electric Vertical Bandsaw
