100mm To 500mm Wooden Pallet Machine Wood Pallet Manufacturing Equipment

Product Categories

Weifang Jiuyi Information technology co., LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Ask Lasest Price
Brand Name :	SH
Model Number :	SLS350, SLSP400, SLS500
Certification :	ISO9001
Price :	US $12,000 - 50,000 / Set
Payment Terms :	T/T or L/C at sight, Western Union
Supply Ability :	500sets/year
Delivery Time :	within 20 days

Add to Cart

No.	Name	Quantity	Details
1	Wood Loading Machine	1	Loading logs to the carriage of two-set vertical band saw
2	Two-Set Vertical Band Sawmill	1	Cutting two sides of logs
3	Rolling Board Conveyor	1	Transfering wood
4	2 head, 3 head, 4 head, 5 head, 6 head Horizontal Band Sawmill	1	Cutting wood to many pieces once
5	Rolling Board Conveyor	1	Output the boads from multi head horizontal band saw
6	Board Multi Rip Saw	1	Cutting board to small size planks
7	Rolling Board Conveyor	1	Output planks from board multi rip saw

Technical Specifications :

Central Console
Overall size	3000*1500mm
Display function	LCD Monitor
Operation	Distant control
Wood loading rack
Length of loading rack	4000mm
Total width	2500mm
Transmission method	Inverter
Motor	3KW
loading method	Pneumatic
Feeding type	Chain feeding
Wood automatic tumbling guide belt
Max. length of tumbling wood
Transmission method	Inverter
Total motor power	6KW
Control	Distant control
SLS350 Twin Bandsaw for logs No.1
Max. sawing log diameter
Min.sawing log diametr	150mm
Log length	800-3000mm
Saw wheel diameter	700mm
Sawing speed	9-25m/min
Main motor power	18.5KW *2
Sizing operation	CNC Touching screen
Automatic roll adjustment centering roller frame
Frame length	6000mm
Width	1000mm
Motor
Log centering operation	Pneumatic
SLSP400 Twin Bandsaw for logs No.2
Max. sawing log diameter	400mm
Min. sawing log diameter	150mm
Log length	800-3000mm
Saw wheel diameter	700mm
Sawing speed
Motor power	18.5KW *2
Sizing operation	CNC touching screen
Slab slope conveyor
Conveyor length	3000mm
Width	2500mm
Motor	2.2KW
DT300-5 Multi Heads Band Saw-5heads
Max. sawing width	300mm
Max. sawing thickness	300mm
Main motor	15kw*5
BPJ300 Slabs Cutting Saw
Max. sawing width	300mm
Max. sawing thickness
Motor power	7.5KW*2
CB600 Wood Edger
Max. sawing width	600mm
Max. sawing thickness	80mm
Blades No.	1-5pcs
Motor power	22kw

Photos

100mm To 500mm Wooden Pallet Machine Wood Pallet Manufacturing Equipment

Multi Heads Band Resaw

Technical data

Technical specifications	DT300-1	DT300-2	DT300-3	DT300-5	DT300-6
Sawing width	300mm	300mm	300mm	300mm	300mm
Minimum wood thickness	2mm	2mm	2mm	2mm	2mm
Maximum wood height	260mm	260mm	260mm	260mm	260mm
Band wheel diameter	700mm	700mm	700mm	700mm	700mm
Saw motor	15kw	15kw x 2	15kw x 3	15kw x 5	15kw x 6
Saw machine length	3500mm	4500mm	5800mm	8500mm	11000
Weight	900kg	1500kg	2200kg	3500kg	5000kg
Feeding	Variable frequency speed adjustable conveyor
Operation	Touching screen auto setworks for sawn thickness

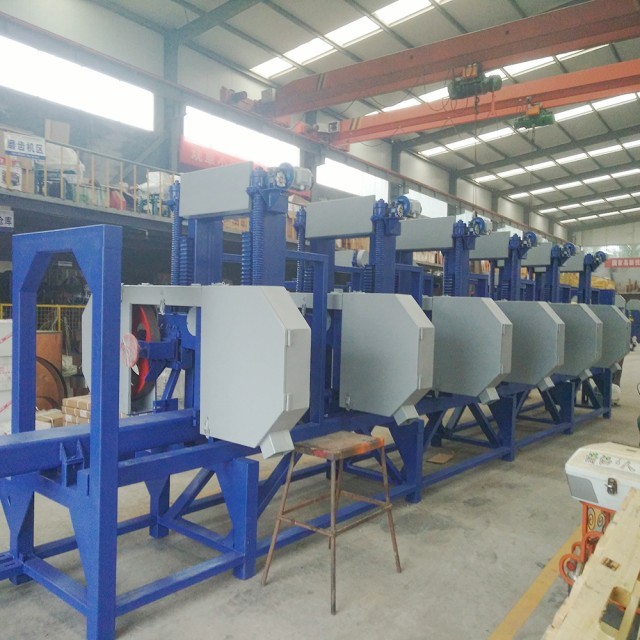

Detailed Image -6heads reaw equipment
100mm To 500mm Wooden Pallet Machine Wood Pallet Manufacturing Equipment

100mm To 500mm Wooden Pallet Machine Wood Pallet Manufacturing Equipment

Slabs Cutting Saw

Specifications:

Model Specifications	BPJ200	BPJ250	BPJ300
Cutting width (mm)	200	250	300
Motor power (KW)	7.5kw x 2	7.5kw x 2	7.5kw x 2
Feeding	Frequency variable auto feeding
Circular blade diameter (mm)	300	355	405
Weight (kg)	200	220	250

100mm To 500mm Wooden Pallet Machine Wood Pallet Manufacturing Equipment

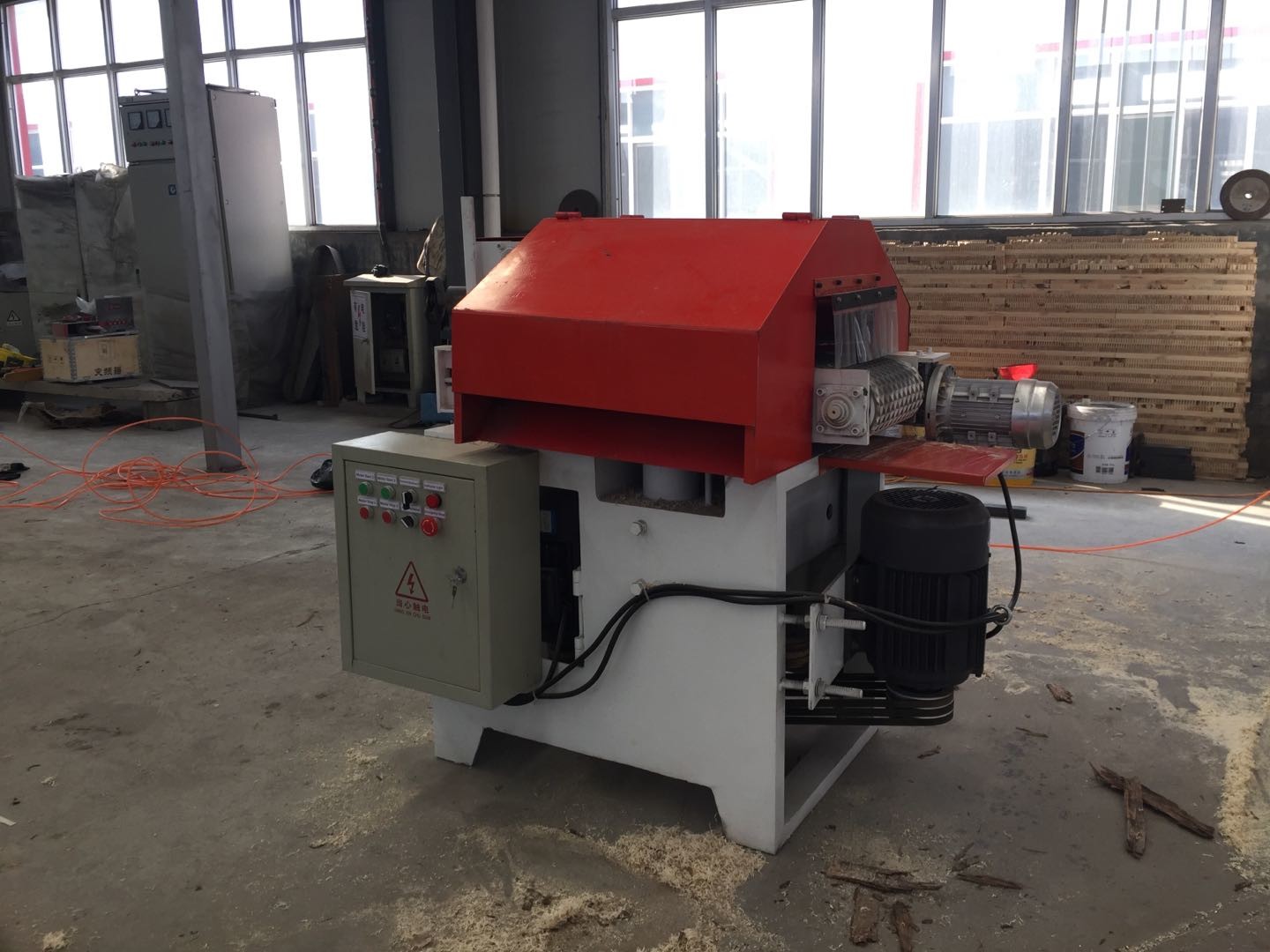

Multi Blades Rip Saw

Technical data :

100mm To 500mm Wooden Pallet Machine Wood Pallet Manufacturing Equipment

100mm To 500mm Wooden Pallet Machine Wood Pallet Manufacturing Equipment
