    Automatic Wood Cut Off Saw Machine, Digital Controlled Automatic Wood Cut Off Saw Machine

    Ask Lasest Price
    Brand Name : SH
    Model Number : DZ-450,DZ-600
    Certification : ISO9001
    Price : US $6,800 - 18,500 / Set
    Payment Terms : T/T, Western Union
    Supply Ability : 1500sets/year
    Delivery Time : within 20 days
    • Product Details
    • Company Profile

    Automatic Wood Cut Off Saw Machine, Digital Controlled Automatic Wood Cut Off Saw Machine

    Automatic Wood Cut Off Saw Machine


    Model
    DZ-450
    DZ-600
    Saw Blade diameter
    450mm*30mm
    600mm*30mm
    Feeding table length
    2m/ 4m/ 6m
    2m/ 4m/ 6m
    Discharge table length
    1200mm
    1200mm
    Cutting height
    10-120mm
    10-140mm
    Cutting width
    30- 200mm
    30- 300mm
    Cutting section thickness*width
    Max. 120*150mm,100*200mm
    Max.120*300mm,140*280mm
    Feeding speed
    5-30m/min
    5-30m/min
    Cutting speed
    40pcs/min
    45pcs/min
    Cutter spindle rotation speed
    3000rpm
    3000rpm
    Servo drive motor power
    0.75kw
    1kw
    Cutting motor power
    7.5kw/11HP
    11kw/15HP
    Total power
    8.5kw
    12.5kw
    Pressing method
    Cylinder, 0.5-0.7Mpa
    Cylinder, 0.5-0.7Mpa
    Cutting tolerance
    In +/-1mm
    In +/-1mm
    Dust collection port
    100mm*2pc
    100mm*2pc
    Electrical components
    Schneider
    Schneider
    PLC Touching screen
    Siemens
    Siemens
    Voltage
    380v 50Hz 3 phase
    380v 50Hz 3 phase

    Automatic Wood Cut Off Saw Machine, Digital Controlled Automatic Wood Cut Off Saw Machine

    Automatic Wood Cut Off Saw Machine, Digital Controlled Automatic Wood Cut Off Saw Machine

    Wood Chamfer Machine

    Technical data:

    ModelEPWC-7050
    Convey servo motor1kw
    Hydraulic motor2.2kw
    Total motor7.2kw
    Voltage380v 50Hz 3phase
    Cutter type45° V milling cutter, left and right
    Working length600-1500mm
    Working thickness17-35mm
    Working width80-150mm
    Productivity500-700pc/h
    Hydraulic pressure0.4-0.5Mpa
    Control systemSiemens
    Machine dimension4450*800*1400mm
    Packing dimension3220*920*1760mm
    Machine weight1040kg

    Photo:

    Automatic Wood Cut Off Saw Machine, Digital Controlled Automatic Wood Cut Off Saw Machine


    Related Products:

    Pallet Foot Pier Cutting Saw Machine


    ModelJD-1500
    Cutting wood max. length1500mm
    Cutting Thickness50-120mm
    Cutting Width60-200mm
    Pallet foot pier size30-200mm
    Saw Diameter400mm
    Motor7.5kw/3phase
    Production capacity1500-1800P/H
    Weight350kgs

    Automatic Wood Cut Off Saw Machine, Digital Controlled Automatic Wood Cut Off Saw Machine

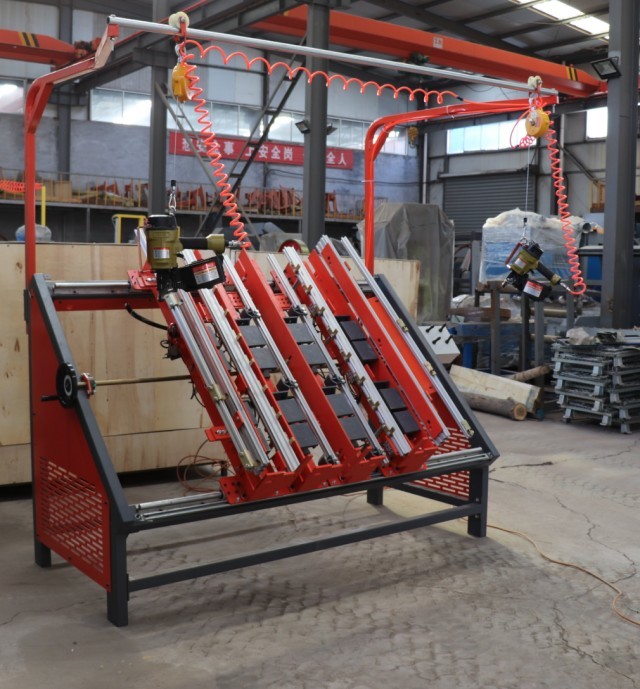

    Pallet Nailing Machine for Euro Pallets

    ModelPT-1600
    Wood pallet length600-1300mm
    Wood pallet width800-1600mm
    Operational modePneumatic operation
    Air pressure0.8MPA
    Production efficiency30-40pcs /h
    Number of beams3p
    Number of nail guns2P (CN70,CN55)
    Weight650kg

    Automatic Wood Cut Off Saw Machine, Digital Controlled Automatic Wood Cut Off Saw MachineAutomatic Wood Cut Off Saw Machine, Digital Controlled Automatic Wood Cut Off Saw Machine


    Quality Automatic Wood Cut Off Saw Machine, Digital Controlled Automatic Wood Cut Off Saw Machine for sale

    Automatic Wood Cut Off Saw Machine, Digital Controlled Automatic Wood Cut Off Saw Machine
