    MB1300 Wood Slab Flattening Mill Machine moulder planer ,wood board planning machine

    Ask Lasest Price
    Brand Name : SH
    Model Number : MB26, MB36, MB700, MB1000, MB1300
    Certification : ISO9001
    Price : US $2,200 - 5,299 / Set
    Payment Terms : T/T, Western Union
    Supply Ability : 1500sets/year of Wood planer
    Delivery Time : within 20 days
    • Product Details
    • Company Profile

    MB1300 Wood Slab Flattening Mill Machine moulder planer ,wood board planning machine

    MB1300 Wood Planer slab flattening machine matched with the portable sawmill


    Wood Planer

    Expand your business with the MB Series planer and begin the production of planed timber products.

    • It planes rough wood surfaces smooth.
    • The MB Series Planer uses the same log bed as the Portable Horizontal Band Sawmill, and they can be used together or separately.
    • The PLANER head can be added to an existing PORTABLE sawmill and logs can be processed into a finished product without ever leaving the sawmill bed.
    • After the log has been squared with the sawmill, the MB Series Planer can then mould or plane it into the final product.

    SPECIFICATIONS:


    ModelMB26MB36MB700MB1000MB1300
    Max. Planning width650mm900mm700mm1000mm1300mm
    Max. Planning length3000mm3000mm4500mm4500mm4500mm
    Processing thickness10-200MM10-200MM10-200MM10-200MM10-200MM
    Main motor power3kw3kw3kw3kw3kw
    Planing head diameter100mm100mm100mm100mm100mm
    Polishing head diameter125mm125mm125mm125mm125mm
    Dust hole100mm100mm100mm100mm100mm
    Weight180kg200kg180kg230kg260kg
    Matched sawmill modelSW26SW36MJ700MJ1000MJ1300

    Large Plank polishing machine(MB1700)

    Specification:


    Max processing planks width1700mm
    Max processing planks length3500mm
    Max processing planks thickness10-200mm
    Main motor power3kw
    Planing head diameter100mm
    Polishing head diameter125mm
    Weight560kg

    MB1300 Wood Slab Flattening Mill Machine moulder planer ,wood board planning machineMB1300 Wood Slab Flattening Mill Machine moulder planer ,wood board planning machine

    MB1300 Wood Slab Flattening Mill Machine moulder planer ,wood board planning machineMB1300 Wood Slab Flattening Mill Machine moulder planer ,wood board planning machine

    Portable Horizontal Band Sawmill (Electric Model )

    • Portable horizontal band saw which is easy to install and operate.
    • Finished with Carbide band saw blade for hard wood cutting .
    • The sawing kerf is small, reduce the waste to high output.
    • The computerized sawmill is sutiable for cutting expensive wood in the furniture factory and move around to cut wood in virgin forest .
    Specifications:

    Model

    MJ700EMJ1000EMJ1300EMJ1600E

    Max. Sawing Wood Diameter

    700MM1000MM1300MM1600MM

    Saw Wheel Diameter

    600MM700MM700MM700MM

    Sawn Thickness

    2-250MM2-300MM2-300MM2-300MM

    Sawing Wood Length MM

    1300-45001300-45001300-45001300-4500

    Main Motor Power

    15KW18.5KW22KW30KW

    Lifting Motor Power

    1.5KW1.5KW1.5KW1.5KW

    Total Weight (KG)

    1100110013001500

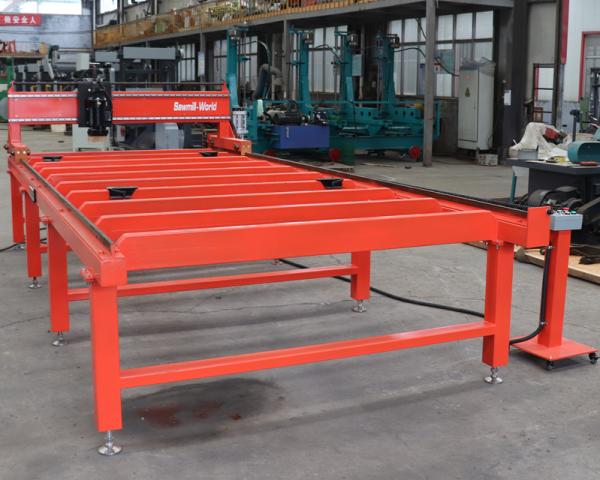

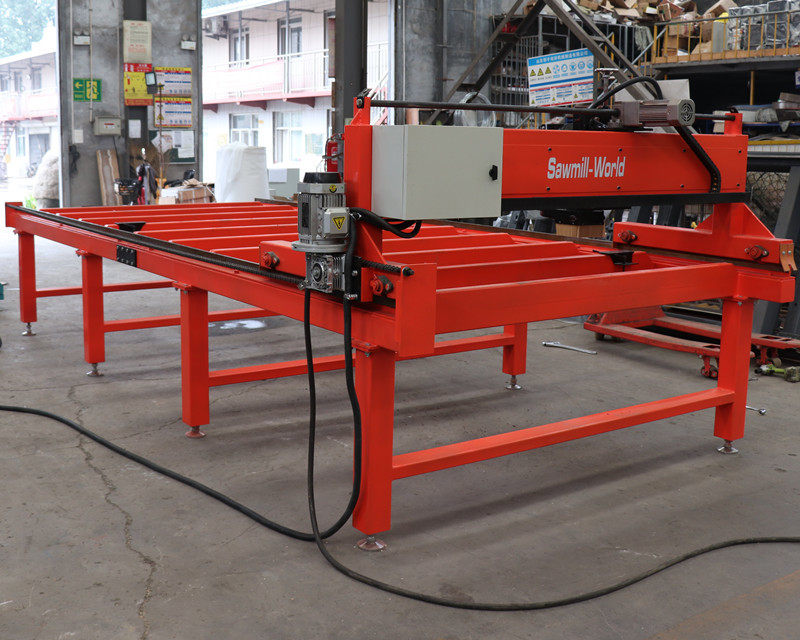

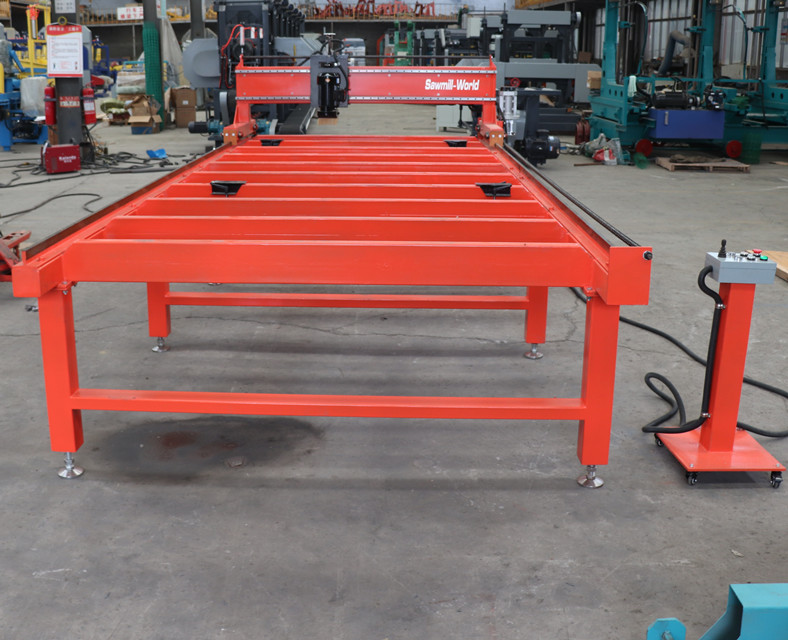

    Detailed Images of stanard model:

    MB1300 Wood Slab Flattening Mill Machine moulder planer ,wood board planning machine


    Quality MB1300 Wood Slab Flattening Mill Machine moulder planer ,wood board planning machine for sale
