    2000mm Angle Cutting Table Saw Mill Timber Wood Cutting Machine With Rails

    Ask Lasest Price
    Brand Name : SH
    Model Number : DS700, D1300,DS2000
    Certification : ISO9001
    Price : US $6,700 - 14,800 / Set
    Payment Terms : T/T, Western Union
    Supply Ability : 500sets/year
    Delivery Time : within 15 days
    • Product Details
    • Company Profile

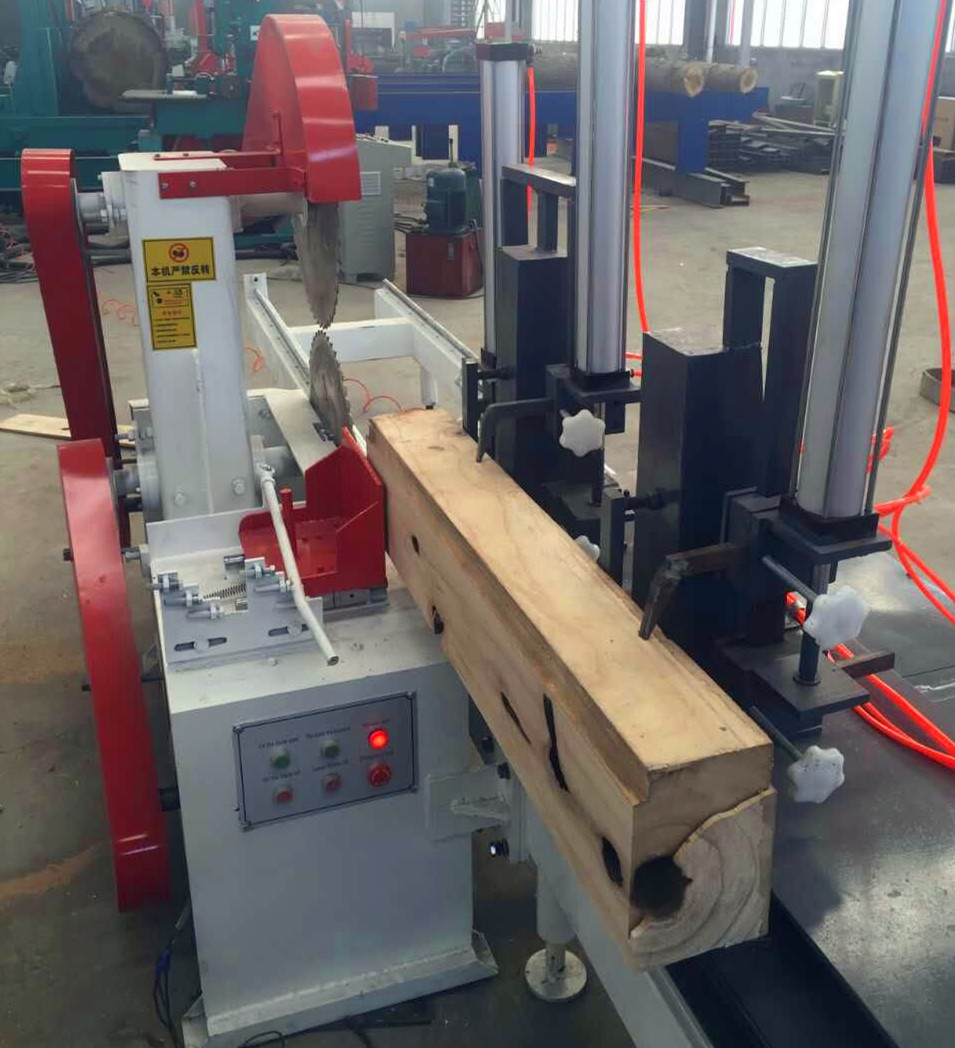

    2000mm Angle Cutting Table Saw Mill Timber Wood Cutting Machine With Rails

    Angle cut saw timber wood machine,Circular swing blade sawmill with rails

    Double Saw blade Angle Circular Swing Blades SawMill

    • The Double Saw Blade Angle Sawmill is a versatile machine for the radial lumber, Pooh flooring material,carpenter lumber and palette lath production.
    • The Blades enables cutting in both directions,which considerably increases the cutting capacity.
    • Quick and accurate electronic positioning guarantee invariable high productivity and safety at work.
    • The angle circular saw is a machinethat:
    • Produces lumber with saw-cut dimension accuracy up to ± 1mm
    • Produces lumber of excellent surface quality
    • Results in very low operational costs
    • Electric invertor crane, computer touch screen for length calculation and remote control.

    Specification:

    • Max. sawing timber size : 300mm x 210mm
    • Carbide circular blade diameter : 760mm , 546mm
    • Log feeding : frequency auto feeding
    Technical ParameterDS700DS1300DS2000
    Max Sawing Wood Diameter700MM1300MM2000MM
    Max Sawing Wood Size150*150MM210 * 210MM300*210MM
    Saw Blade Diameter2*424MM2*546MM

    1*760mm

    1*546mm

    Motors Power(KW)

    11KW*2,

    1.5KW*2, 2,2kw

    15KW*2,

    1.5KW*1,2.2KW*1, 3kw x 1

    22KW*1,15KW*1

    2.2KW*1, 3kw x 1, 1.5kw x 1

    Max Swing Wood Length6 Meters6 Meters6 Meters
    Machine weight1500KG2000KG3000KG

    Photos:

    2000mm Angle Cutting Table Saw Mill Timber Wood Cutting Machine With Rails

    2000mm Angle Cutting Table Saw Mill Timber Wood Cutting Machine With Rails

    Hot Selling Products:

    Twin blades sliding table sawmill -manual type

    modelTT1500TT2000TT3000
    Cut log max. diameter400mm400mm400mm
    Cut length1.5m2m3m
    Blade diameter500mm500mm500mm
    Main Motor power7.5KW*27.5KW X 2 sets7.5KW X 2 sets
    Track length3000mm5000mm6000mm
    Log clampingPneumatic up/downPneumatic up/downPneumatic up/down
    Carriage Rail ModeLinear AxisLinear AxisLinear Axis
    Feeding modeManualManualManual
    Setting size modeManualManualManual

    2000mm Angle Cutting Table Saw Mill Timber Wood Cutting Machine With Rails2000mm Angle Cutting Table Saw Mill Timber Wood Cutting Machine With Rails

    Twin blades sliding table sawmill -computer type

    2000mm Angle Cutting Table Saw Mill Timber Wood Cutting Machine With Rails

    MJ109 Woodworking Circular Table Saw

    SpecificationMJ109
    saw blade diameter900mm
    Working table size1500mm×800mm
    Max Sawing Wood Thickness360mm
    Height from table to ground800mm
    Motor power18.5KW/380V
    Rotation speed1500r/min
    Overall size1900x1000x1350mm
    Weight630kgs

    Diesel type


    2000mm Angle Cutting Table Saw Mill Timber Wood Cutting Machine With Rails

    Electrical type

    2000mm Angle Cutting Table Saw Mill Timber Wood Cutting Machine With Rails

    Wood Chipper

    Introduction:

    1. Processing log diameter : 50-300mm

    2. End chips size :20-40mm

    3. Production capacity : 7-15tons/hour

    4. We can also do production line design as customer needs

    Technical Data

    ModelSH216SH218
    Feeding Inlet240*540mm310*680mm
    Rotor Diameter650mm800mm
    Blade Quantity2 or 32 or 3
    Motor Power55KW110KW
    In Feed Conveyor6000mm6000mm
    Out Feed Conveyor10000mm10000mm
    Capacity7-10T/H9-13T/H
    Weight4070KG7500KG

    2000mm Angle Cutting Table Saw Mill Timber Wood Cutting Machine With Rails

    2000mm Angle Cutting Table Saw Mill Timber Wood Cutting Machine With Rails
