GASOLINE ENGINE WOOD PROCESSOR
It is a trailer-mounted firewood processor approved for road use,
making it ideal for both the rental market and those who want to
transport the machine over longer distances by car.
The firewood processor can handle logs up to Ø40mm, and comes with
a hydraulic log holder, hydraulic adjustment of the knife and swing
of the conveyor, fully hydraulic sawing function and accumulator.
The pressure of the saw can be adjusted with the accumulator. It
also comes standard with a 15hp lifan engine, 22" Bar and saw chain
from Stihl. Hydraulic feed belt is 190 cm and conveyor belt 320 cm.
The width of the feed belt is 19 cm.
The conveyor belt is raised and lowered with a winch, has a swivel
and can be locked in three positions. This allows you to fill three
bags in one line. The length of the wood can be adjusted as
desired, from 30 to 60 cm. The wood machine has an electric start
and its own tank for saw chain oil that holds 5L.
There is an improved lubrication system for the saw chain. The
lubrication system works so that a valve is activated every time
the saw goes down, only a given amount of lubricating oil is pumped
out. The advantage of this is that you get enough oil for
lubrication and cooling, but reduces pollution.
| Model | RM40 |
| Power | 15HP Gasoline engine |
| Weight | 520kg |
| Max. log diameter | 400mm |
| Max.log length | 55cm |
| Saw motor with bearing | 36L/min, 4800rpm |
| Chain saw | 18inch (Original STIHL) |
| Cylinder Bore | 3.2inch |
| Cycle time | 7second |
| Wheel | 12inch high speed trailer wheel |
| Knife | 4ways (Optional 6 ways) |
Hydraulic Wood Splitter
1.Introduction :
Wood Splitter this equipment is mainly applied in the splitting of
stumps, and the splitted stumps can be processed into wood chips as
raw materials for wooded board industry and paper making industry.
Before this kind of equipment is developed, band saw is usually
used to divide up wood materials into pieces. However, these
grotesque tree roots usually contain some sand and stone, so it
easily causes damage to saw and poses some dangers to operators,
and it is low efficient method.
Wood Splitter possesses a high efficiency in the splitting of
stumps, and is safe, reliable and endurable. Since this equipment
was launched into market, it has been making full use of rich wood
resources to create good economic benefits for users, and in return
it receives high appraises from users
2.Specification:
| Model | SHPM1200 | SHPM1500 |
| Motor power | 15KW | 18.5KW |
| Stroke | 1200MM | 1500MM |
| Forward speed | 80MM/S | 80MM/S |
| Backward speed | 120mm/s | 120mm/s |
| Max. thrust | 30T | 50T |
| Weight | 2200kg | 3000kg |

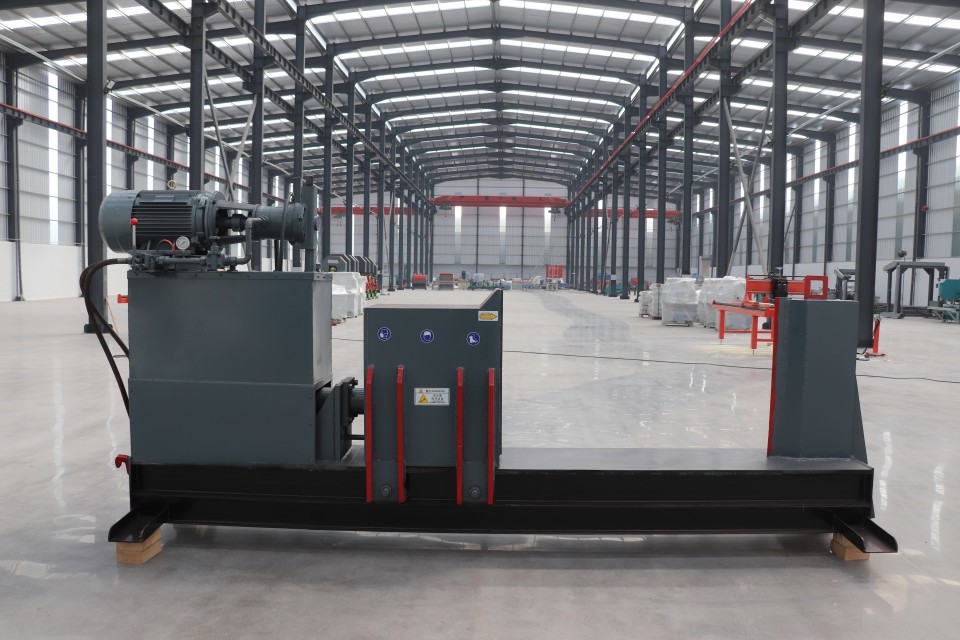

3.Photos:
