    CNC Wood Saw Machine Twin Vertical Band Saw Machine Wood Cutting Log Sawmill For Sale

    Ask Lasest Price
    Brand Name : SH
    Model Number : SLS350, SLS500
    Certification : ISO9001
    Price : US $12,000 - 50,000 / Set
    Payment Terms : T/T or L/C at sight, Western Union
    Supply Ability : 500sets/year
    Delivery Time : within 15 days
    • Product Details
    • Company Profile

    CNC Wood Saw Machine Twin Vertical Band Saw Machine Wood Cutting Log Sawmill For Sale

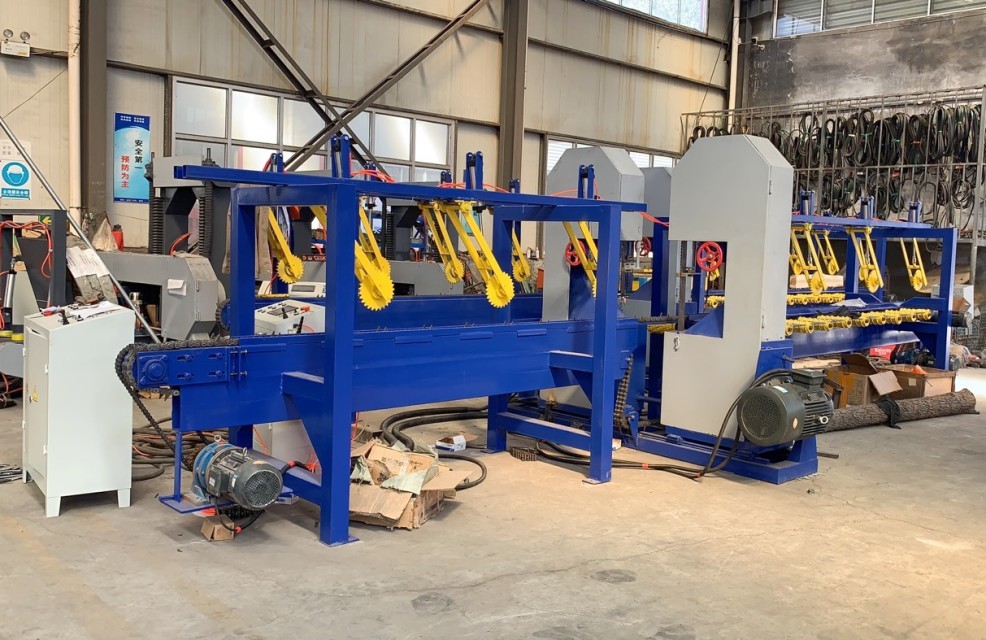

    Twin vertical wood band saw, log sawing sawmill machine with frequency feeding

    TWIN BANDSAW FOR LOG EDGES CUTTING

    Designed to receive logs and make two vertical cuts removing a slab from either side of the log.

    · Ideal to cut pine, eucalyptus, and teak.

    · High-precision cutting.

    · Laterally-supported chain.

    · High-production continuous feed system.

    · Produces up to 4,000 m³ per month.

    · Highly efficient use of wood, with the finest cut on the market.

    · Motorization and control panel included.

    · Automatic feed


    Technical Specifications:

    Technical dataSLS350SLS500
    Maximum log diameter350mm500mm
    Minimum log diameter100mm100mm
    Wood length1000 to 3000mm1000 to 3000mm
    Feed speed9-25m/min (inverter)9-25m/min (inverter)
    Conveyor length7000mm3500mm x 2
    Band wheel diameter700mm760mm
    Width of saw blade50-80mm50-100mm
    Length of saw blade48505200mm
    Thickness of saw blade0.9mm0.9mm
    Saw motor2x18.5kw2x22kw
    Feed motor5.5kw4kw x 2
    Sawn sizing controlTouching screen auto setworksTouching screen auto setworks

    Photos

    CNC Wood Saw Machine Twin Vertical Band Saw Machine Wood Cutting Log Sawmill For SaleCNC Wood Saw Machine Twin Vertical Band Saw Machine Wood Cutting Log Sawmill For SaleCNC Wood Saw Machine Twin Vertical Band Saw Machine Wood Cutting Log Sawmill For Sale

    Optional - slabs slope conveyor
    CNC Wood Saw Machine Twin Vertical Band Saw Machine Wood Cutting Log Sawmill For Sale
    Optional - log loading deck
    CNC Wood Saw Machine Twin Vertical Band Saw Machine Wood Cutting Log Sawmill For Sale

    Complete Sawmill Line -design as customer needs

    CNC Wood Saw Machine Twin Vertical Band Saw Machine Wood Cutting Log Sawmill For Sale

    CNC Wood Saw Machine Twin Vertical Band Saw Machine Wood Cutting Log Sawmill For SaleCNC Wood Saw Machine Twin Vertical Band Saw Machine Wood Cutting Log Sawmill For Sale


    Multi Heads Band Resaw

    Technical data

    Technical specificationsDT300-1DT300-2DT300-3DT300-5DT300-6
    Sawing width300mm300mm300mm300mm300mm
    Minimum wood thickness2mm2mm2mm2mm2mm
    Maximum wood height260mm260mm260mm260mm260mm
    Band wheel diameter700mm700mm700mm700mm700mm
    Saw motor15kw15kw x 215kw x 315kw x 515kw x 6
    Saw machine length3500mm4500mm5800mm8500mm11000
    Weight900kg1500kg2200kg3500kg5000kg
    FeedingVariable frequency speed adjustable conveyor
    OperationTouching screen auto setworks for sawn thickness


    Detailed Image -6heads reaw equipment
    CNC Wood Saw Machine Twin Vertical Band Saw Machine Wood Cutting Log Sawmill For Sale

    CNC Wood Saw Machine Twin Vertical Band Saw Machine Wood Cutting Log Sawmill For Sale

    Slabs Cutting Saw

    Specifications:

    Model

    Specifications

    		BPJ200BPJ250BPJ300
    Cutting width (mm)200250300
    Motor power (KW)7.5kw x 27.5kw x 27.5kw x 2
    FeedingFrequency variable auto feeding
    Circular blade diameter (mm)300355405
    Weight (kg)200220250

    CNC Wood Saw Machine Twin Vertical Band Saw Machine Wood Cutting Log Sawmill For Sale

    Multi Blades Rip Saw


    Technical data :

    ModelZHW800-70ZHW800-80ZHW800-100
    Sawing wood height10-70mm10-80mm20-100mm
    Sawing wood width800mm800mm800mm
    Carbide blade diameter280mm305mm355mm
    Main motor22KW30KW37KW
    Blade quantity1P-10P1P-10P1P-10P
    Rotation speed3500/min3500/min3500/min

    CNC Wood Saw Machine Twin Vertical Band Saw Machine Wood Cutting Log Sawmill For Sale

    CNC Wood Saw Machine Twin Vertical Band Saw Machine Wood Cutting Log Sawmill For Sale


    Double Spindle Panel Cutting Multiple Blades Rip Saw -Heavy Duty Type

    Model
    SH100-400
    SH120-400
    SH160-400
    SH200-400
    SH250-400
    SH270-400
    SH290-400
    Sawing width
    350-400mm
    350-400mm
    350-400mm
    350-400mm
    350-400mm
    350-400mm
    350-400mm
    Sawing thickness
    40-100mm
    50-120mm
    70-160mm
    90-200mm
    110-250mm
    130-270mm
    150-290mm
    Motor
    30kw*2
    37kw*2
    37/45kw
    37/45kw
    45kw*2
    45/55kw
    55KW*2
    Saw Blade Diameter
    180MM
    230mm
    255mm
    230mm
    280mm
    280mm
    380mm
    Spindle Diameter
    70mm
    70mm
    70mm
    80mm
    80mm
    80mm
    100mm
    Weight
    2330kg
    2450kg
    2480kg
    2550kg
    2580kg
    2620kg
    2700kg

    CNC Wood Saw Machine Twin Vertical Band Saw Machine Wood Cutting Log Sawmill For Sale
