    High Speed Automatic Timber Wood Cut Off Saw Wood Cross Cutting Saw Machine

    Ask Lasest Price
    Brand Name : SH
    Model Number : SH300,SH500, SH520
    Certification : ISO9001
    Price : US $1,500 - 3,500 / Set
    Payment Terms : T/T, Western Union
    Supply Ability : 1500sets/year
    Delivery Time : within 20 days
    • Product Details
    • Company Profile

    High Speed Automatic Timber Wood Cut Off Saw Wood Cross Cutting Saw Machine

    Wood Pallet Machine Lumber Cutoff Saw, Automatic Woodworking Cross Cutoff Saw With Table

    High Speed Wood Cut Off Saw
    • Technical data
    ModelSH300SH500MJ520
    Max Cutting Width300mm500mm520mm(200mm)
    Max Cutting Thickness40mm70mm50mm(190mm)
    Saw Blade Size400mm400mm600mm
    Motor Power4KW5.5kw7.5kw
    Saw Spindle Speed2840r/min1850r/min1850r/min
    Feeding Conveyor1000*640mm1000*640mm1200*660mm
    Outfeeding Conveyor1000*640mm1200*660mm1000*640mm
    • Detailed Image

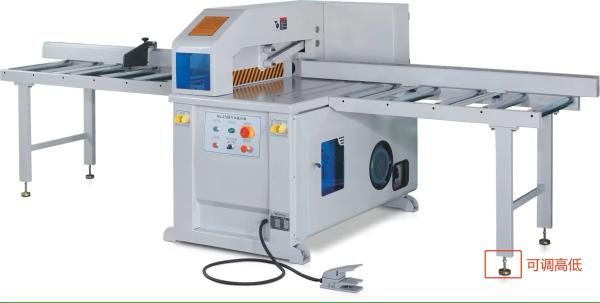

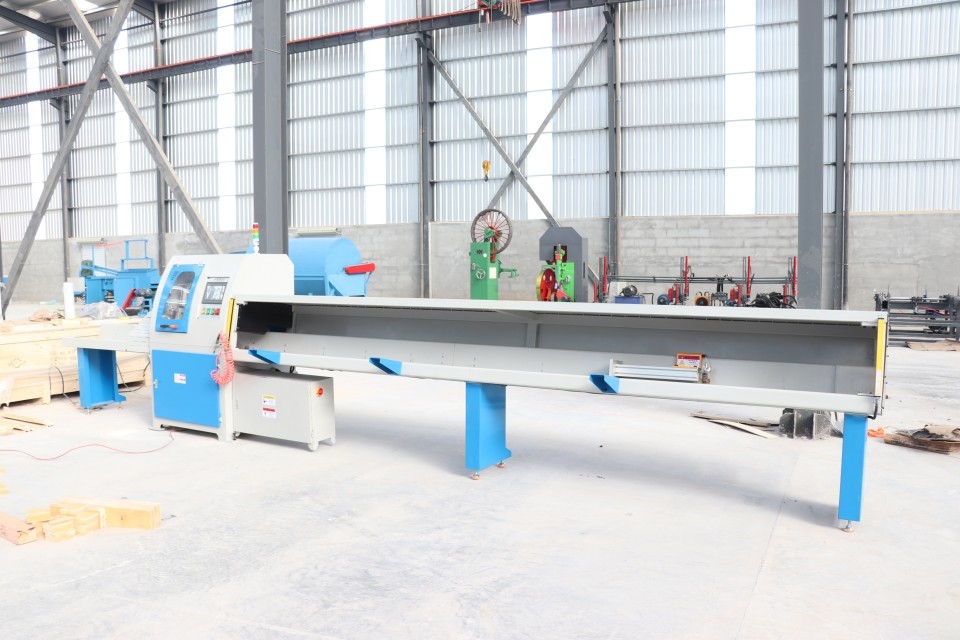

    High Speed Automatic Timber Wood Cut Off Saw Wood Cross Cutting Saw Machine
    High Speed Automatic Timber Wood Cut Off Saw Wood Cross Cutting Saw Machine

    Automatic Wood Cut Off Saw Machine


    Model
    DZ-450
    DZ-600
    Saw Blade diameter
    450mm*30mm
    600mm*30mm
    Feeding table length
    2m/ 4m/ 6m
    2m/ 4m/ 6m
    Discharge table length
    1200mm
    1200mm
    Cutting height
    10-120mm
    10-140mm
    Cutting width
    30- 200mm
    30- 300mm
    Cutting section thickness*width
    Max. 120*150mm,100*200mm
    Max.120*300mm,140*280mm
    Feeding speed
    5-30m/min
    5-30m/min
    Cutting speed
    40pcs/min
    45pcs/min
    Cutter spindle rotation speed
    3000rpm
    3000rpm
    Servo drive motor power
    0.75kw
    1kw
    Cutting motor power
    7.5kw/11HP
    11kw/15HP
    Total power
    8.5kw
    12.5kw
    Pressing method
    Cylinder, 0.5-0.7Mpa
    Cylinder, 0.5-0.7Mpa
    Cutting tolerance
    In +/-1mm
    In +/-1mm
    Dust collection port
    100mm*2pc
    100mm*2pc
    Electrical components
    Schneider
    Schneider
    PLC Touching screen
    Siemens
    Siemens
    Voltage
    380v 50Hz 3 phase
    380v 50Hz 3 phase

    High Speed Automatic Timber Wood Cut Off Saw Wood Cross Cutting Saw MachineHigh Speed Automatic Timber Wood Cut Off Saw Wood Cross Cutting Saw Machine

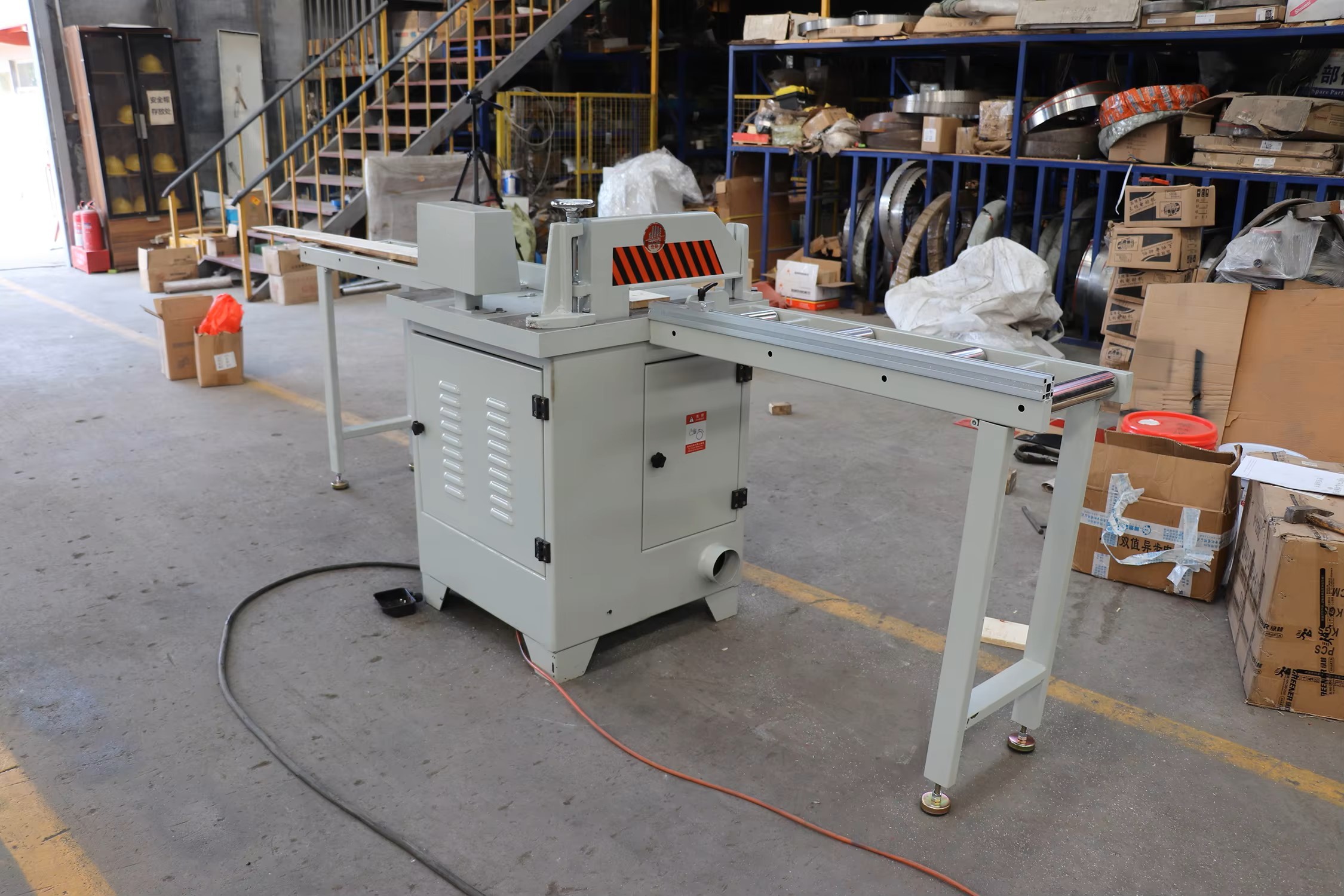

    High Speed Automatic Timber Wood Cut Off Saw Wood Cross Cutting Saw Machine


    Related Products:

    Heavy Duty Multi Heads Cut-off Saw


    ModelPE-40003PE-50004PE-60005
    Cutting Length600-4000mm600-5000mm600-6000mm
    Cutting Thickness10-120mm10-120mm10-120mm
    Cutting Width10-400mm10-400mm10-400mm
    Saw Diameter450mm450mm450mm
    Blade Pieces3P4P5P
    Motor

    7.5kW*3

    0.75kW*2

    7.5kW*4

    0.75kW*2

    7.5kW*5

    0.75kW*2

    Efficiency100m³/8h150m³/8h200m³/8h
    Weight2000kg2500kg3000kg

    High Speed Automatic Timber Wood Cut Off Saw Wood Cross Cutting Saw MachineHigh Speed Automatic Timber Wood Cut Off Saw Wood Cross Cutting Saw Machine


    Pallet Foot Pier Cutting Saw Machine


    ModelJD-1500
    Cutting wood max. length1500mm
    Cutting Thickness50-120mm
    Cutting Width60-200mm
    Pallet foot pier size30-200mm
    Saw Diameter400mm
    Motor7.5kw/3phase
    Production capacity1500-1800P/H
    Weight350kgs

    High Speed Automatic Timber Wood Cut Off Saw Wood Cross Cutting Saw Machine


    Multi Blades Circular Saw for wood panels cutting off

    • cutting both ends of the panels in same length
    • cutting length is adjustable
    • with auto feeding
    • chain drive

    Technical data:


    Multi blades cutting off circular saw
    ModelQT2000QT3000QT4000
    Cutting height100mm100mm100mm
    Cutting width2000mm3000mm4000mm
    Circular blade diameter300mm300mm300mm
    Main motor power3kw x23kw x33kw x4
    weight620kgs820kgs1020kgs
    Overall size3200x1800x1150mm2200x1800x1150mm4800x1800x1150mm

    Photos:

    High Speed Automatic Timber Wood Cut Off Saw Wood Cross Cutting Saw Machine

    High Speed Automatic Timber Wood Cut Off Saw Wood Cross Cutting Saw Machine

    Wood Slasher

    • Technical data
    Technical ParameterDM1100DM1300DM1600DM1900DM2100DM2400
    Guide Plate Length(MM)110013001600190021002400
    Log Diameter(MM)90011001300160019002200
    Motor(KW)33445.55.5
    Weight(KG)180190200220250

    280


    High Speed Automatic Timber Wood Cut Off Saw Wood Cross Cutting Saw MachineHigh Speed Automatic Timber Wood Cut Off Saw Wood Cross Cutting Saw Machine
